190 version 2-Aluminum Tripod

Made after 1993-04-29

This version has different parts from the 190, 190X and MT190 series tripods.

Version 2 has wide leg release button (parts C2) on the leg brace.
Leg braces are not interchangeable between versions.

Manfrotto 190-3 version 3

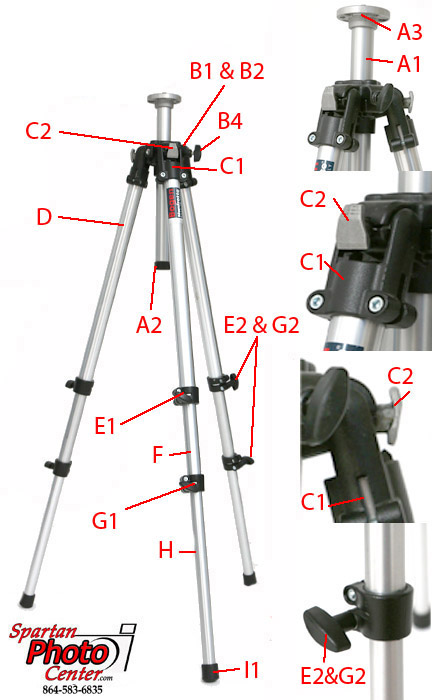

A1 USED Center Column
A2 Center Column Cap Single
A2 Center Column Cap -5 Pack
A3 Grub Screw Single
A3 Grub Screw 5 Pack
3 grub screws required

B1 USED Upper Main Casting
B2 USED Lower Main Casting
B3 USED Column Locking Shoe & Spring
B4 USED Center Column Lock Knob

C1 USED Leg Brace w/ Double Screws
C2 USED Wide Leg Release Button

D USED Upper Leg Tube
D1 Padded Leg Tube Cushion

E1 USED Upper Leg Clamp Assembly
E2 Replacement Leg Lock Knob (deep throat)
E2 Leg Lock Knob(deep throat)
E3 Leg Lock Cap Screw
E4 Leg Lock Hex Nut

F USED Middle Leg Tube

G1 USED Lower Leg Clamp Assembly
G2 USED Leg Lock Knob (deep throat)
G2 Leg Lock Knob (deep throat)
G3 Leg Lock Cap Screw
G4 Leg Lock Hex Nut

H Bottom Leg Tube
H USED Bottom Leg Tube

I1 Rubber Foot
I2 Retracable Spike Feet Set

Bogen 381 Leg Wrap



Editor note: Version 2 has wide leg release button (part C2) on the leg brace.
The leg release buttons and Leg braces are not interchangeable between Versions.
USED parts are marked as USED, new parts not marked. Where there is a dual listing the one not showing USED is the NEW part.
