190XWNB Version 3-Aluminum Tripod

Made after 2010-05-28

Under construction

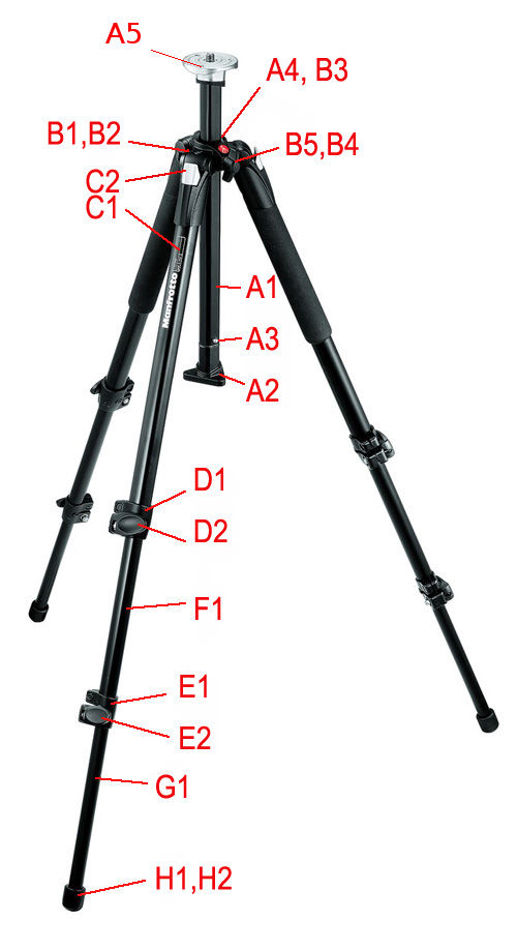

Manfrotto 190XWNB tripod
A1 Center Column
A2 Center Column Plug
A3 Center Column Spring
A4 Center Column Cushion(not a stock item)

B1 Main Casting Top Plate
B2 Main Casting Bottom Plate
B3 Strap Loop
B4 Lock Knob Housing
B5 Lock Knob
B5 USED Lock Knob

C1 Leg Brace
C2 Leg Release Button
C3 Leg Wrench&Clip

D1 Upper Leg Lock
D1 USED Upper Leg Lock
D2 Snap Lever

E1 Lower Leg Lock
E2 Snap Lever

F1 Middle Leg Tube

G1 Lower Leg Tube

H1 Rubber Foot
(standard on this tripod)
H2 Spike Foot



Editor note: All parts are interchangeable between versions. Part B1 and B2 were changed from ver 1 to ver 2 and from 2 to 3
We do not know if they are interchangeable. Click on the link to see the actual part picture.
