503HDV VERSION 1 - Video Pan Head

Made about 2007-02-09
For Serial Number C0521458




A1 501PL Quick Release Plate
A2 501PL Rubber Pads (set of 2)
A3 1/4 QR Replacement Screw
A4 3/8 QR Replacement Screw

Quick Release Variations
500PLONG QR Plate
501PL QR Plate
501PLONG QR Plate
509PLONG QR Plate

B1 QR Receiver Top Plate
B2 QR Safety Lock Button
B3 QR Lock Wedge
B4 QR Plate Lock Knob

C1 Right Side Plate (not a stock item)
C2 Right Side Pan Handle Cover (not a stock item)
C3 Right Side Tension Bearing(not a stock item)
C4 Right Side Tension Knob
C5 Right Side Knob Cover (not a stock item)
C6 Right Side Tension Knob (not a stock item)
C7 Tilt Friction Disk
C8 Decorative Cover

D1 Main Housing (not a stock item)
D2 Side Bubble Level-Single
D2 Side Bubble Level-10 pack
D3 Main Bearing Stack (not a stock item)
D4 Main Bridge (not a stock item)
D5 Main Baffle (not a stock item)
D6 Main Pan Tension Control (not a stock item)
D7 Lighted Level
D8 Pan Lock Knob
D9 Rotation Lock Shoe (not a stock item)

E1 Left Side Plate & Knob (not a stock item)
E2 Left Side Knob Cover (not a stock item)
E3 Left Side Pan Bar Clamp Spacer
E4 Left Side Spring Assy
E5 Pan Bar Spacer Screws

F1 Base Plate (not a stock item)
F2 Base Friction Disk
F3 Base Flat Bearing (not a stock item)

G Pan Handle Assembly
G1 Pan Handle Clamp Knob
G1a Clamp Knob Retaining Washer
G2 Pan Handle Clamp


Editor note: Both versions are interchangeable. These pictures are for illustration Only

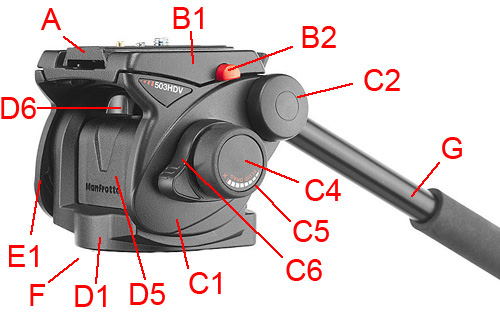

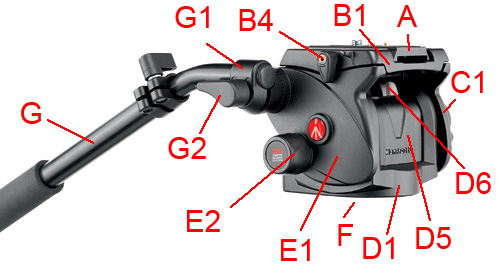

Click on the numbered link to see the actual part picture.
