756B Version 1 - Aluminum Tripod

Made after 2002-09-17

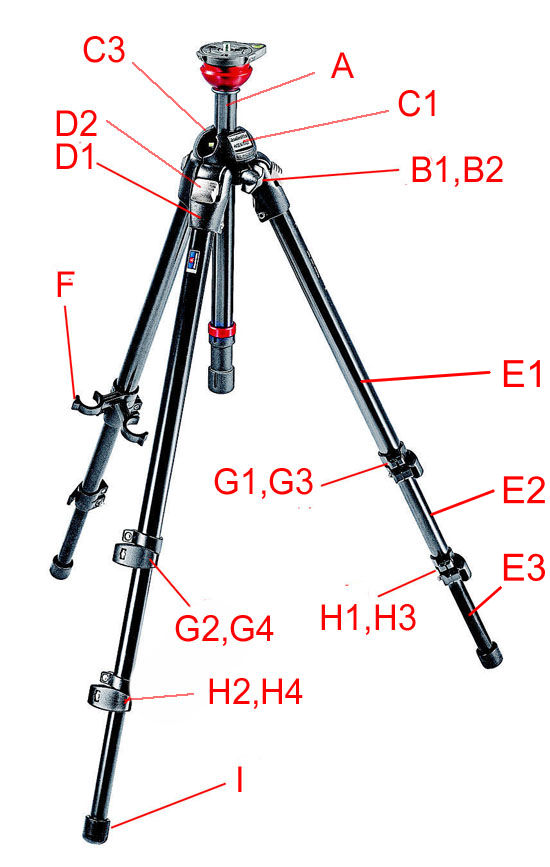

756B tripod'
A Center Column Assembly
A1 Top Leveler Plate
A2 Center Shaft
A3 Inside Ball
A4 Center Column
A5 Leveler Plate Tightening Knob


B1 Center Column Lock Knob
B2 Center Sliding Block

C1 Center Column Capstan Left (protrudes on the bottom)
C2 Friction Bearing
C3 Center Column Capstan Right(recessed on the bottom)
C4 Main Casting Top Plate
C5 Main Casting Bottom Plate

D1 Leg Brace
D2 Leg Extender Release Button

E1 Upper Leg Tube
E2 Middle Leg Tube
E3 Lower Leg Tube

F Leg Clips - 2 pack

G1 Original Upper Leg Clamp Assy (discontinued no longer available)
G2 Original Upper Snap Lever
G3 Repl Upper Leg Clamp
G4 Repl Upper Snap Lever

H1 Original Upper Leg Clamp Assy (discontinued no longer available)
H2 Original Upper Snap Lever
H3 Repl Upper Leg Clamp
H4 Repl Upper Snap Lever

I Rubber Foot (not a stock item)



Editor note: Parts C5, D1, E1 has different parts numbers
from version 1 to version 2 and may not be interchangeable.
The leg snaps parts G2 and H2 are old & not interchangeable
with the new replacement parts G3, G4, H3, H4.

Click on the numbered link to see the actual part picture.
