756MF3 version 2 Carbon Fiber Video Tripod

Made after 2006-10-25
For serial number from A0629812

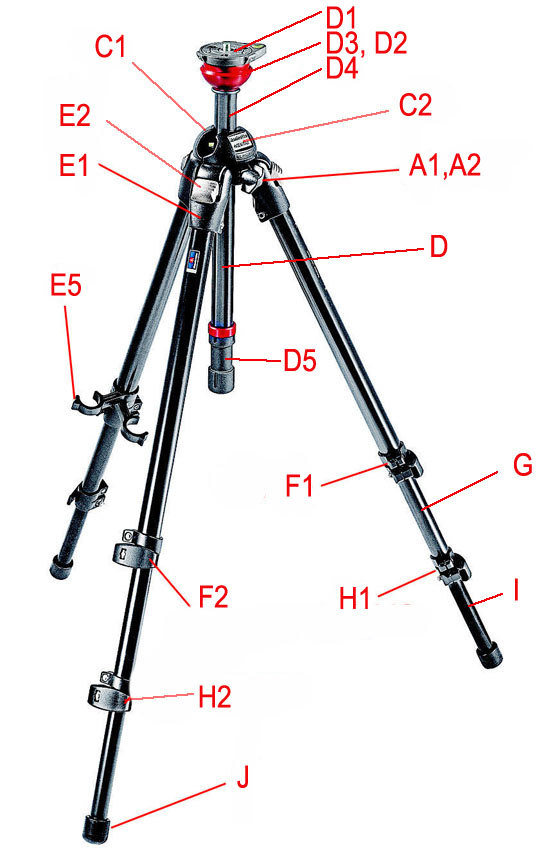

MANFROTTO 756MF3 TRIPOD
A1 Center Column Lock Knob
A2 Center Column Brake Shoe
(not a stock item)

B1 Main Casting Top Plate (not a stock item)
B2 Main Casting Bottom Plate (not a stock item)

C1 Pro Center Column Adpater (protrudes at bottom)
C2 Rotation Bushing
C3 Pro Center Column Adapter (recedes on bottom)

D Center Column Assembly
D1 Top Leveler Plate
D2 Center Shaft
D3 Inside Ball
D4 Center Column
D5 Leveler Plate Tightening Knob

E1 Leg Brace & Upper Leg Tube (not a stock item)
E2 Leg Extender Release Button (not a stock item)
E3 Clamping Collar Sleeves
(discontinued and no longer available)
E4 Leg Tube Sleeves
(discontinued and no longer available)
E5 Leg Clips (not available)

F1 Upper Leg Lock Assy (not a stock item)
F2 Upper Snap Lever (not a stock item)

G Middle Leg Tube (not a stock item)

H1 Lower Leg Lock Assy (not a stock item)
H2 Lower Snap Lock Lever

I Lower Leg Tube

J Rubber Foot (set of 3)

K Cable Clip & Wrench

L Strap Loop

Editor note: Click on the link to see the actual part picture.
