MKBFRA4GR-BH Green BeFree Tripod Kit
Made after 2016-12-13

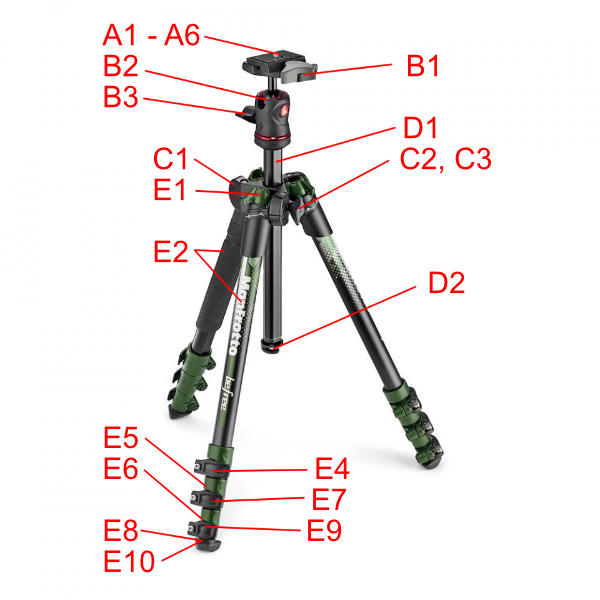

Head Parts
A1 Quick Release 1/4-20 ScrewA2 Quick Release 3/8 Screw - Replaced by 200PL-14
A3 Quick Release 1/4 Anti-Rotate
A4 Quick Release 3/8 Anti-Rotate
A5 1/4 Thumbscrew
A6 3/8 Thumbscrew
B1 QR Receiver Plate
B2 Ball Assembly
B3 Ball Lock Knob
Tripod Parts
C1 Main Casting Spider AssyC2 Center Column Locking Shoe
C3 Center Column Lock Knob
C4 Leg Bearing - individual
C4 Leg Bearing - set of 3
D1 Center Column
D2 CTR Column Cap & Bumper
D3 Short Center Column BFSCC
E1 SILVER Leg Position Lock (single)
E1 SILVER Leg Position Lock (set of 3)
E2 Upper Leg Tube & Lock Assy
E3 Upper Leg Tube & Lock with cushion (not available as a part)
E4 Upper Leg Clamp Lever
E5 Upper Middle Leg Tube & Lock Assy
E6 Middle Leg Tube & Lock Assy
E7 Middle Leg Clamp Lever
E8 Bottom Leg Tube
E9 Bottom Leg Clamp Lever
E10 Rubber Feet with Screw
E10 Spike Feet - 3 pack
E10 Suction Cup Feet - 3 pack
E11 Leg Clamp Sleeves (set of 3)
E12 Screw Cap (set of 10)
F T25 Torx Wrench
Editor note: Click on the numbered link to see the actual part picture.
