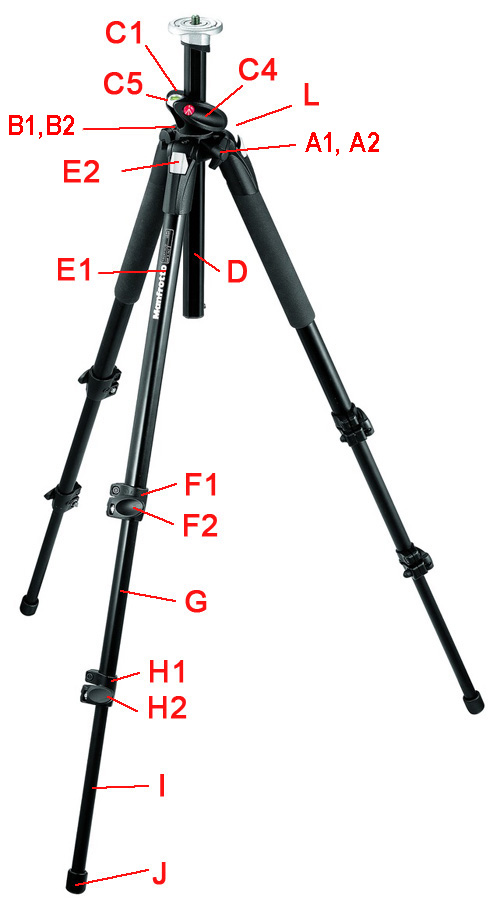

MT190A3-P - Aluminum Tripod
Made after 2012-02-17
For Serial Number A3094772
A1 Center Column Lock Knob
A2 Center Column Brake Shoe
B1 Main Casting Top Plate
B2 Main Casting Bottom Plate
C1 Left Side Pro Casting
C2 Pro Bushing
C3 Pro Rotation Bushing
C4 Right Side Pro Casting
C5 Bubble Level
D Substitute Center Column Assy
E1 Leg Brace & Upper Leg Tube
E2 Leg Extender Release Button
E2 USED Leg Extender Release Button
F2 Upper Snap Lever
F3 Clamp Screw
F4 T25 Wrench
G Middle Leg Tube
H1 Lower Leg Clamp Assy
H2 Lower Snap Lock Lever
I Lower Leg Tube
J1 Rubber Foot (set of 3)
J2 Spike Feet Accessory (set of 3)
J3 Suction Cup Feet Accessory (set of 3)
K Cable Clip & Wrench
L Strap Loop
L USED Strap Loop
Editor note: D is a substitute part. Item numbers listed in the index on the right column may not be shown on the picture because the part may be obscured or is inside in underneath another part and cannot be shown. Click on the link to see the actual Part picture.
