MT190X3 - Aluminum Tripod

Made after 2014-07-15


Manfrotto MT190x3 Tripod




A Center Column Assy
A1 Grub Screw
A3 Rubber Bumper
A4 Center Column Plug

B (not shown, not a part)

C1 Main Casting Top Plate Only
For Version 1 and 2: serial numbers from A4343717 to A4419875
C1 Main Casting Top Plate Only
For Version 3 and 4: serial numbers from A4419875
C2 Main Casting Top & Bottom Plates
For Version 1 and 2: serial numbers from A4343717 to A4419875
C2 Main Bottom Casting Assy
For Version 1 and 2: serial numbers from A4343717 to A4419875
C2 Main Bottom Casting Assy
For Version 3 and 4: serial numbers from A4419875

C3 Center Column Lock Knob
C4 Rubber Cap
C5 Accessory Nut
C6 Main Casting Screws - 3 pack
C7 Torx T25 Wrench
C8 Center Column Lock Shoe

D1 Leg Extender Release Button

D2 Upper Tube & Brace with Rubber Grip
For Version 1: serial numbers from A4343717
D3 Upper Tube and Brace (no rubber)

For Version 1: serial numbers from A4343717

D2 Upper Tube & Brace with Rubber Grip
For Version 2: serial numbers 0 to A6277142
D3 Upper Tube and Brace (no rubber)
For Version 2: serial numbers from 0 to A6277142

D2a Upper Tube & Brace with Rubber Grip
For Version 3 and 4: serial numbers from A6277142

D2b Upper Tube & Brace without Endgravings
For Version 3 and 4: serial numbers from A6277142

D3 Upper Tube and Brace with Endgravings
For Version 3 and 4: serial numbers from A6277142

E1 Lower Leg Clamp Assy
E2 Lower Snap Lock Lever
E3 Clamp Screw
E4 T25 Wrench

F Middle Leg Tube

G1 Lower Leg Clamp Assy
G2 Lower Snap Lock Lever
G3 Clamp Screw
G4 T25 Wrench

H Lower Leg Tube

I (not shown, not a part)
J (not shown, not a part)

K Rubber Foot single
K Rubber Feet - set of 3
K Spike Feet Accessory - set of 3
K Suction Cup Feet Accessory - set of 3

L1 (not shown, not a part)
L2 T25 Wrench
L3 Cable Clip

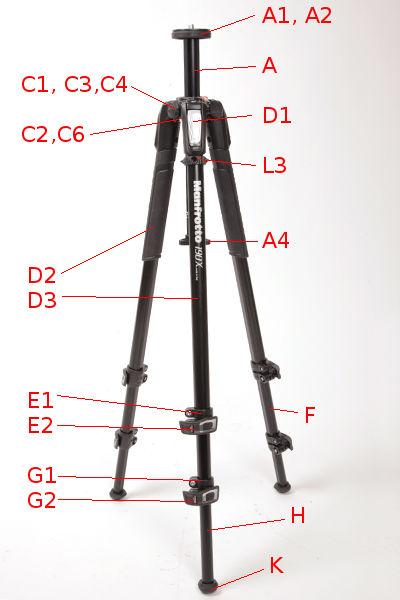

Editor note: Item numbers listed in the index on the right column may not be shown on the picture because the part may be obscured or is inside in underneath another part and cannot be shown. Click on the numbered link to see the actual part picture.
