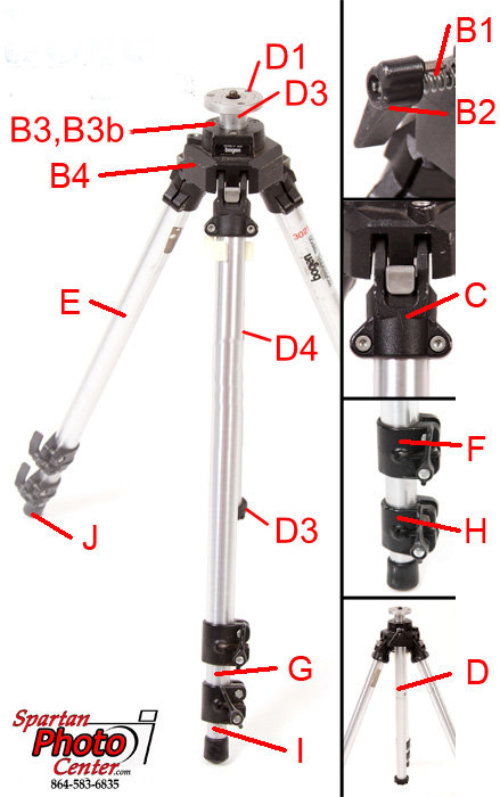

Manfrotto 055 Version 4
Also called Manfrotto 055
Made after 1994-05-09
This style was any 055 made with silver tubes, and 055B with black tubes.
All parts supplied are for the silver tripods unless otherwise noted. USED parts are marked as USED, parts not marked as USED are new.
A1 USED Center Column Lock Knob Assy
A2 USED Center Column Shoe
B USED Main Casting Assembly
Includes A1,A2 and B1,B2,B3 parts
B1 USED Main Casting
B2 USED Top Plate
B3 Replacement Top Plate Screws
B4 Screw-in Lanyard Stud
B4 Strap with Screw-in Lanyard Stud
C USED Leg Brace Assembly
C2 Leg Brace Release Button
C2 USED Leg Brace Release Button
USED Long Silver Center Column Assembly
D1 USED Short Silver Center Column
D2 USED Short Silver Column Extension
D3 Center Column Grub Screw
D3 Center Column Grub Screw - 5 Pack
D4 Center Column Rubber Cushion - 2 pack
D5 USED Center Column Rubber Cap
D6 USED Center Column Joining Shim
USED Complete Leg Assembly
E USED Silver Upper Leg Tube
F USED Upper Leg Lock with Plastic Levers
F1 Plastic Double Spiral Leg Lock Flip Lever
Replaces both metal and plastic levers
F2 Nut Caps (set of 5)
G USED Silver Middle Leg Tube
H USED Lower Leg Lock with Plastic Levers
H1 Plastic Double Spiral Leg Lock Flip Lever
Replaces both metal and plastic levers
H2 Nut Caps (set of 5)
I USED Silver Bottom Leg Tube
J1 Rubber Feet (set of 3)
J2 Used original Spike Foot (requires 3)
J2 Suction Cup Feet (set of 3)
K Cable Clip & Plastic Wrench
L Strap Lanyard
L2 Tripod Strap with Lanyard
Editors Notes: The main casting parts (parts B) and leg braces (parts C) are NOT interchangeable with earlier models. Parts F and H are Double Spiral Leg Flippers. The Leg Lock Flip Levers are the Double Spiral type and are not interchangeable with the later Single Spiral type.
