055PRO Version 2 - Silver Aluminum Tripod

Made after 2001-08-29
Also Called Bogen 3021BPRO

Same as the 055PROB except this has Silver leg tubes.
This version has different parts from the 055MF, 055XB, 055XDB and 055XPROB


MANFROTTO 055PRO TRIPOD
A1 Silver Center Column Assy
A2 Center Column Cap
A3 Grub Screw
A3 Grub Screw 5 pack

B1 USED Main Casting Top Plate
B2 USED Main Casting Bottom Plate
B3 USED Left Half Pro (with label/logo)
B4 USED Right Half Pro (with Bebble Level)
B5 USED Strap Loop
B6 Center Column Lock Shoe
B6 USED Center Column Lock Shoe
B7 USED Lock Knob
B5 Substitute Center Column Lock Knob
B8 USED Friction Bearing

Complete Leg Assembly

C1 USED Leg Brace
C2 USED Leg Release Button

D1 USED Upper Leg Clamp
D2 Snap Lever For Both Leg Clamps

E1 USED Lower Leg Clamp
E2 Lower Snap Lever

F1 USED Silver Upper Leg Tube
F2 Cable Clip (not a stock item)

G1 USED Silver Middle Tube

H1 USED Silver Lower Leg Tube

I1 Rubber Foot (single)
I1 Rubber Foot (set of 3)
(standard on this tripod)
I2 Spike Feet Accessory (set of 3)
I3 Suction Cup Feet Accessory (set of 3)


Editor note: Not all parts are NOT interchangeable on the 055PRO series; especially the MT055 and the 055. Check your modle carefully.

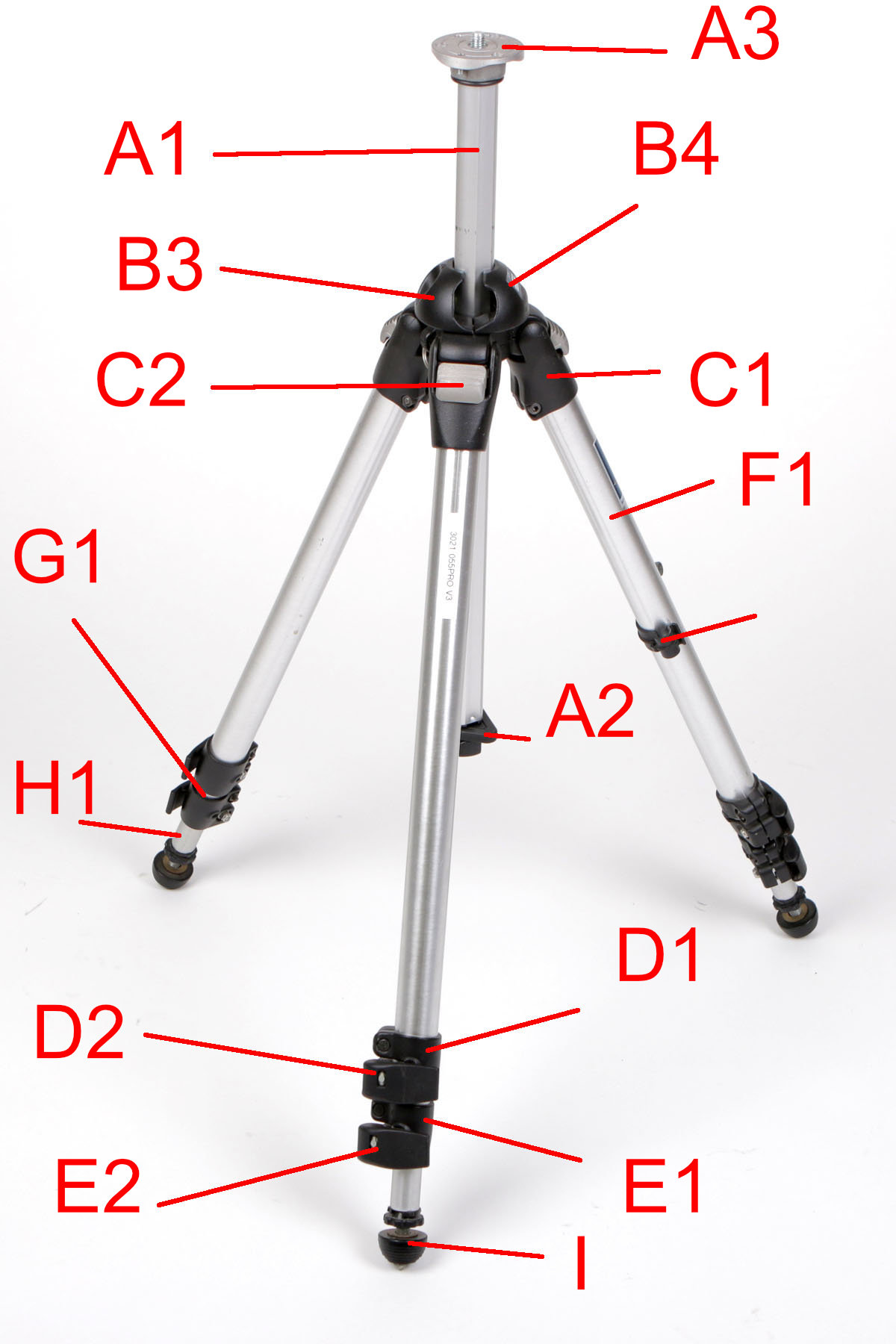

Click on the numbered link to see the actual part picture.
