055PRO version 4-Aluminum Tripod

A1 Center Column Plug
A2 Silver Center Column Assy
A3 Center Column Cap
A4 Grub Screw Single
A4 Grub Screw 5 Pack
3 grub screws required

B1 USED Main Casting Top Plate
B2 USED Main Casting Bottom Plate
B3 USED Left Half Pro (with label/logo)
B4 USED Right Half Pro (with Bebble Level)
B5 Strap Loop
B5 USED Strap Loop
B6 Center Column Lock Shoe
B6 USED Center Column Lock Shoe
B7 Lock Knob
B7 USED Lock Knob
B8 Friction Bearing

C USED Complete Leg Assembly

C1 Leg Brace
C1 USED Leg Brace
C2 USED Leg Release Button

D1 USED Upper Leg Clamp
D2 Snap Lever For Both Leg Clamps

E1 USED Lower Leg Clamp
E2 Lower Snap Lever

F1 USED Silver Upper Leg Tube
F1 USED Silver Upper Leg Tube w/ Cushion
F2 Cable Clip

G1 USED Silver Middle Tube

H1 USED Silver Lower Leg Tube

I USED Silver Bottom Tube
I USED Silver Bottom Tube & Foot
I1 Rubber Foot (single)
I1 Rubber Foot (set of 3)
(standard on this tripod)
I2 Spike Feet Accessory (set of 3)
I3 Suction Cup Feet Accessory (set of 3)


Editor note: Not all parts are NOT interchangeable on the 055 series; especially the MT055 and the 055. Check your modle carefully.

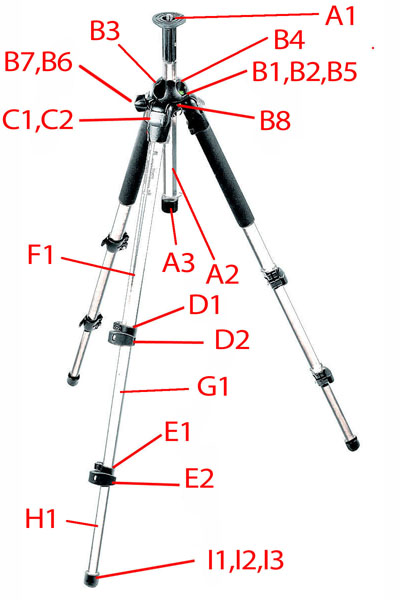

Click on the numbered link to see the actual part picture.

See 055PRO ver 4
Manufacturers Parts List
