055CXPRO4 Version 1 Carbon FiberTripod

Made after 2008-05-29
For Serial Number A1351035

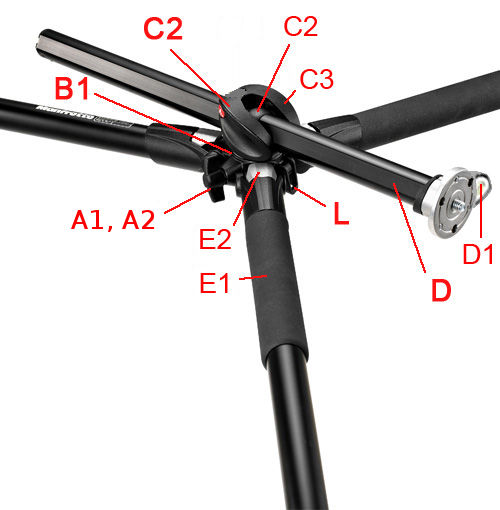

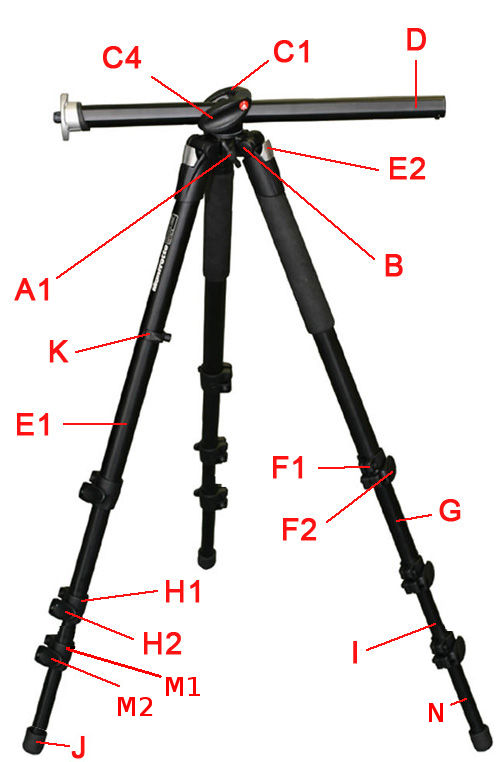

These pictures are for illustration Only

A1 Center Column Lock Knob
A1 USED Center Column Lock Knob
A2 Center Column Brake Shoe

B1 Main Casting Top Plate
B2 Main Casting Bottom Plate

C1 Left Side Pro Casting
(not a stock item)
C2 Rotation and Tilt Bushing
(not a stock item)
C3 Right Side Pro Casting
(not a stock item)

D Center Column Assy
D1 Bubble Level
D2 Grub Screw Single
D2 Grub Screw 5 Pack
3 grub screws required
D3 Slanted Rubber Bumper

E1 Leg Brace & Upper Leg Tube
E2 Leg Extender Release Button
E3 Clamping Collar Sleeves (set)
E4 Leg Tube Sleeves (set)

F1 Upper Leg Clamp Assy
F2 Upper Snap Lever
F3 Clamp Screw
F4 T25 Wrench

G Middle Leg Tube
(not a stock item)

H1 Lower Leg Clamp Assy
H2 Lower Snap Lock Lever
H3 Clamp Screw
H4 T25 Wrench

I Lower Leg Tube

J1 Rubber Foot (set of 3)
J2 Spike Feet Accessory (set of 3)
J3 Suction Cup Feet Accessory (set of 3)

K Cable Clip & Wrench

L Strap Loop
L USED Strap Loop

M1 Bottom Leg Clamp Assy
M2 Bottom Snap Lock Lever
M3 Clamp Screw
M4 T25 Wrench

N Bottom Leg Tube



Editor note: Click on the numbered link to see the actual part picture. All versions are interchangeable.
