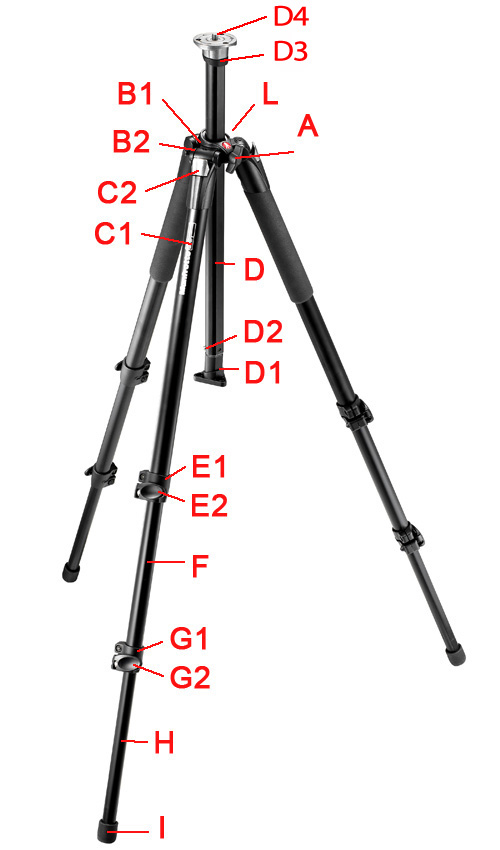

055XB Version 2 Aluminum Tripod

A1 Center Column Lock Knob
A1 USED Center Column Lock Knob
A2 Center Sliding Block
A2 USED Center Sliding Block

B1 Main Casting Top Plate
B1 USED Main Casting Top Plate
B2 Main Casting Bottom Plate
B2 USED Main Casting Bottom Plate

C1 Leg Brace & Upper Leg Tube
C1 USED Leg Brace & Upper Leg Tube
C2 Leg Extender Release Button
C2 USED Leg Extender Release Button

D Center Column
D USED Center Column
D 055XSCC Short Center Column
D1 Center Column Plug
D2 Plug Spring
D3 Rubber Spacer
D4 Grub Screw Single
D4 Grub Screw 5 Pack
3 grub screws required

E1 Upper Leg Clamp Assy
E2 Upper Snap Lever

F Middle Leg Tube
F USED Middle Leg Tube

G1 Lower Leg Clamp Assy
G2 Lower Snap Lock Lever

H Lower Leg Tube
H USED Lower Leg Tube

I1 Rubber Foot (single)
I1 Rubber Foot (set of 3)
(standard on this tripod)
I2 Spike Feet Accessory (set of 3)
I3 Suction Cup Feet Accessory (set of 3)

K Cable Clip & Wrench

L Strap Loop
L USED Strap Loop




Editor note: Part C2 was changed from ver 1 to ver 2. Click on the numbered link to see the actual part picture.

See 055XB ver 2
Manufacturers Parts List
