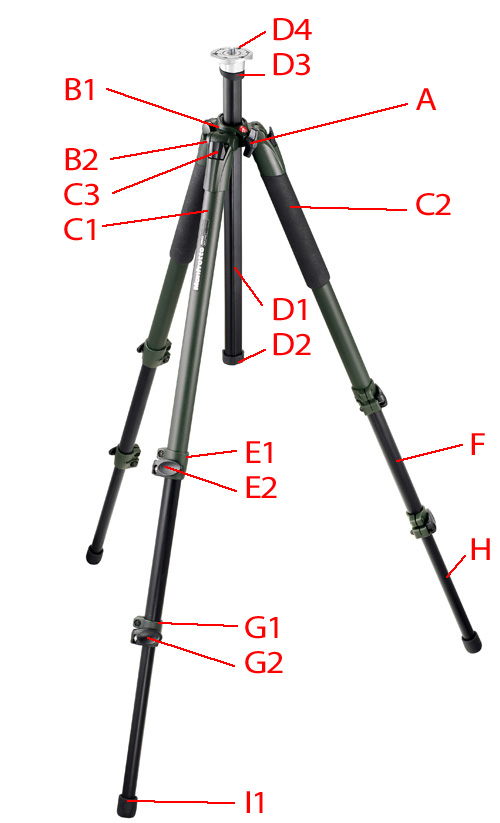

055XV Version 1 Aluminum Tripod

Made after 2007-01-05
For Serial Number A0794001

This version has different parts from the 055XB and 055XPROB




A1 Center Column Lock Knob
A2 Center Sliding Block

B1 Main Casting Top Plate
B2 Main Casting Bottom Plate

C1 Leg Brace & Upper Leg Tube
C2 Rubber Grip
C3 Leg Extender Release Button

D1 Center Column Assembly
D2 Center Column Plug
D3 Rubber Spacer
D4 Grub Screw Single
D4 Grub Screw 5 pack
3 grub screws required


E1 Upper Leg Clamp Assy
E2 Upper Snap Lever

F Middle Leg Tube

G1 Lower Leg Clamp Assy
G2 Lower Snap Lock Lever

H Lower Leg Tube

I1 Rubber Foot (single)
I1 Rubber Foot (set of 3)
(standard on this tripod)
I2 Spike Feet Accessory (set of 3)
I3 Suction Cup Feet Accessory (set of 3)

K Cable Clip & Wrench

L Strap Loop
L USED Strap Loop



Editor note: All parts are interchangeable between versions. These parts are different colors than the 055XB but are mostly functionally interchangeable between models. Click on the numbered link to see the actual part picture.
