075 Version 3 Aluminum Tripod
Made before 1993-02-12
Also called the Bogen 3035 or 3036
A2 USED Main Casting Bottom Plate
A3 USED Casting Lock Knob
A4 Bubble Level
A5 USED Leg Retainer
A6 Center Column Shims
B USED Complete Leg Assy
B1 (not a part on this version)
B2 USED Leg Brace and Upper Leg Tube
B3 USED Middle Leg
B4 USED Lower Leg Assy
B5 Rubber Spike Foot
C1 USED Crank with Gear
C2 USED Round Center Column
C3 USED Center Column Plug
D USED Spider Assembly
E1 USED Center Column Rod
E2 USED Spider Tension Knob
E3 USED Spider Strut Assy
F1 USED Single Spiral Upper Leg Clamp
F2 USED Single Spiral Upper Leg Clamp Snap Lever
F1 USED Double Spiral Upper Leg Clamp
F2 USED Double Spiral Upper Leg Clamp Snap Lever
G1 USED Single Spiral Lower Leg Clamp
G2 USED Single Spiral Lower Leg Clamp Snap Lever
G1 USED Double Spiral Lower Leg Clamp
G2 USED Double Spiral Lower Leg Clamp Snap Lever
H USED Cable Clip

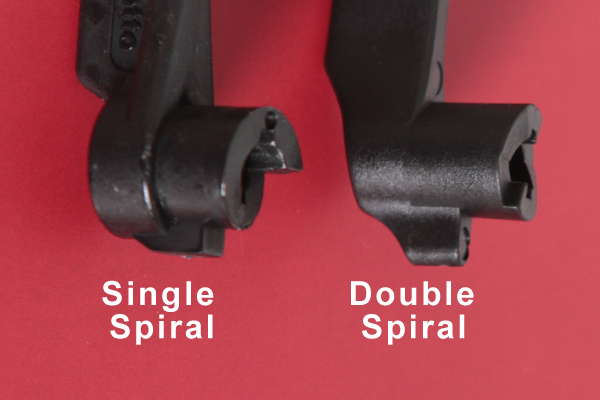

Editor note:Check the inside of the leg lock flip lever. Earlier versions have a single spriral and later versions will have a double Spiral, as shown.
Editor note: Not all parts are interchangeable between versions. Center Columns, Elevation cranks and gears and main castings are not interchangeable between versions. You can completely replace the leg lock assembly on version 4 with the version 3 Leg Clamps. The twist levers and clamps are either Single Spiral or Double SPiral Twist Levers and are NOT interchangeable between the styles.
The manufacturer shows 075 version 4 as two separate models. This version uses a parts list that says version 4, but is is the older with the version 3 parts. Click on the numbered link to see the actual part picture.
