Manfrotto 079
3249 Monopod Versions 1 and 2
Aka Bogen 3016
Made about 1995-06-01 or 2003-07-18
USED parts are marked as USED, parts not marked as USED are new.
Be aware that there are another versions of the 079 with 2- leg locks and a narrow flange on the top where the camera connects. See It Here. If you have a 3- leg lock version then it is a 3249. The parts are NOT interchangeable.

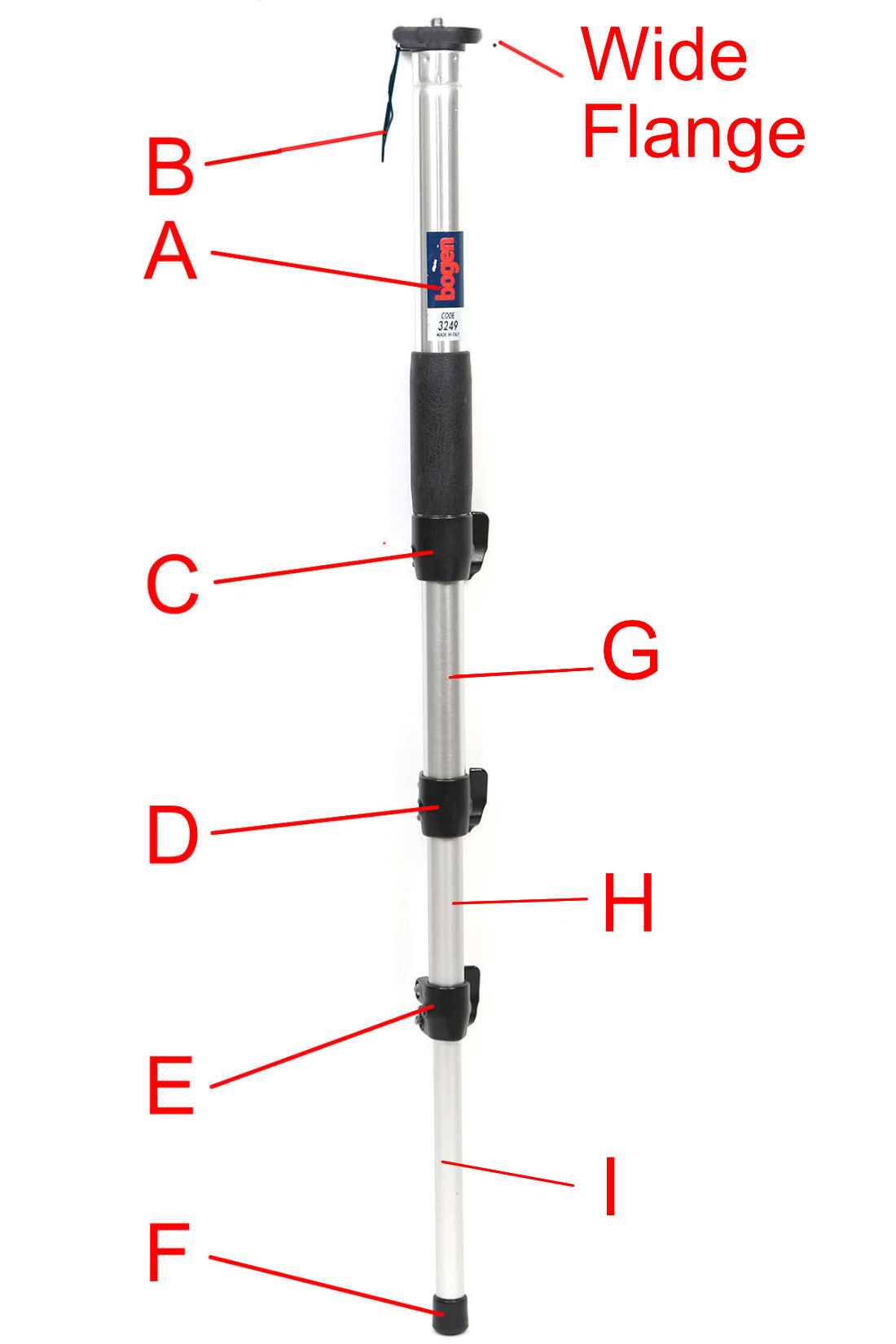

079 Silver Monopod Version 1
Also known as Manfrotto 479
Characteristics: 3-leg tubes, 2-locking clamps, wide flange where camera mounts
Silver Verson is shown for clarity.A Top Silver Leg Tube
A1 Original Cork Gripper
A1 New Rubber Gripper
B Wrist Strap
D USED Single Spiral Upper Leg Lock
D1 Single Spiral Leg Lock Flipper
D USED Double Spiral Upper Leg Lock
D1 Double Spiral Leg Lock Flipper
D2 Nut Caps (set of 5)
E USED Single Spiral Upper Leg Lock
E1 Single Spiral Leg Lock Flipper
E USED Double Spiral Upper Leg Lock
E1 Double Spiral Leg Lock Flipper
E2 Nut Caps (set of 5)
F1 Rubber Foot (single)
F2 Retractable Spike Foot
F2 Suction Cup Foot
G Upper Middle Silver Leg Tube
H Lower Middle Silver Leg Tube
I Bottom Silver Leg Tube
Editor note: Parts marked as USED are reconditioned and are functionally the same as new parts. Where there is a dual listing the one not showing the USED lablel is the NEW part.
Click on the numbered link to see the actual part picture. These parts are not necessarily interchangeable with the other models listed on this page. Leg tubes may be interchangeable, but variations between versions might render them shorter or tighter fitting that the actual part.
