Manfrotto 116MK3 version 7 Video Head
USED parts are marked as USED, parts not marked as USED are new.
A Quick Release Plate
A1 3/8-16 Screw (set of 2)
A2 1/4-20 Screw (set of 2)
B1 USED Top Plate
B2 USED Quick Release Lock Knob
B3 Cork Pad
B3 Rubber Pad
C1 Pan Handle Clamp Lock Knob
C2 USED Pan Handle Clamp
D1 Knob
E1 USED Pan Collar
E2 USED Main Spindle Assy
E3 USED Bearing Stack
E4 Tension Knob
E5 Fluid Grease
F1 Main Housing
F2 Retaining Screw
G1 Pan Handle Assembly
G1 USED Pan Handle Assembly
G2 Pan Handle Clamp
H1 Main Housing
H2 USED Left Side Assembly
H3 USED Right Side Assembly
H4 USED Right Side Bezel
H5 Bubble Level

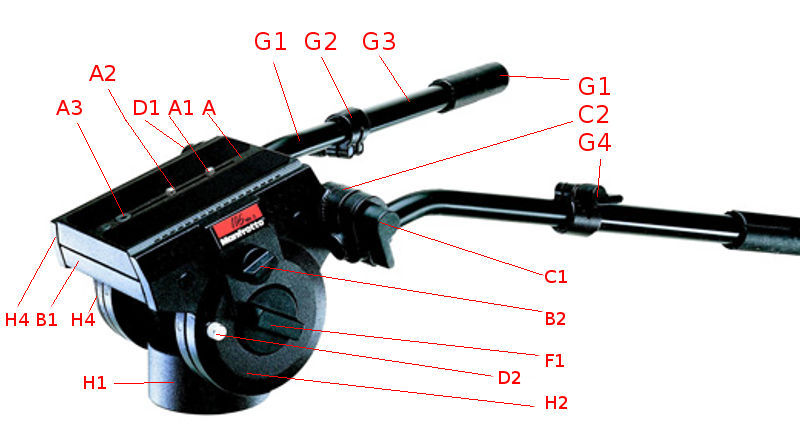

Editor note: There are older versions for which we do not have parts lists. Versions 7 & 8 are interchangeable and the main differences that more parts were added to the verson 8 list. 3066 is the 116MK3 - which is not to be confused with the 116MK2. Click on the numbered link to see the actual part picture.
