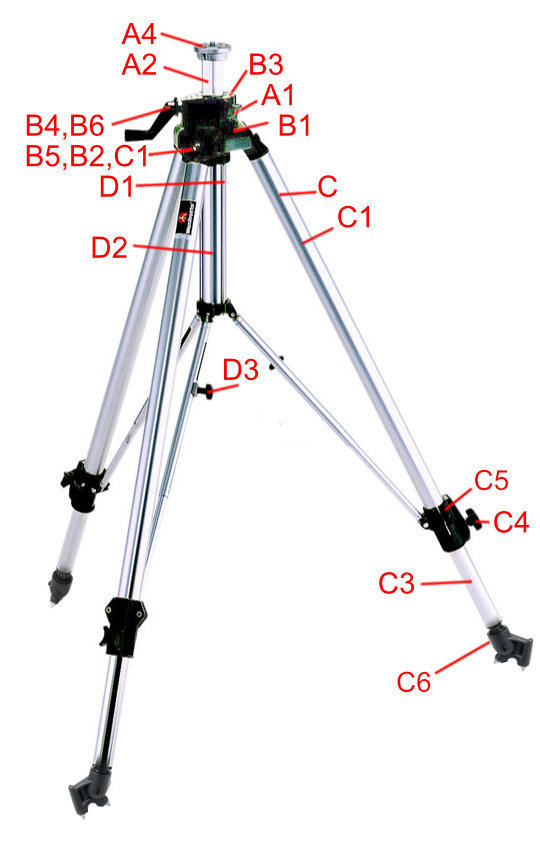

Manfrotto 117MV Versions 6 & 7 Silver Heavy Duty Tripod
Made after 2001-03-26
USED parts are marked as USED, parts not marked as USED are new.
Many of the B and C parts are not interchangeable between other versions of 117MV or 117MVB. Look carefully at the parts to ensure thay match what you need to replace.
A1 Center Column Lock Knob
A1 USED Center Column Lock Knob
A2 Center Column
A2 USED Center Column
A3 Center Column Cap
A3 USED Center Column Cap
A4 Center Column Grub Screw
A4 Center Column Grub Screw - 5 Pack
B1 USED Main Casting Assembly
B2 USED Leg Tensioner
B3 Main Casting Top Plate
B3 USED Main Casting Top Plate
B4 Elevation Crank
B4 USED Elevation Crank
B5 Bubble Level
B6 Elevation Gear
B6 USED Elevation Gear
B7 Top Plate Screws
C1 USED Leg Brace Assembly
C2 USED Upper Leg Tube - Not a current part
C3 USED Lower Leg Assembly - Not a current part
C4 Lower Leg Lock Knob
C4 USED Lower Leg Lock Knob
C5 is only Available on Part C3
C6 Spike Foot Cover
D USED Spider Assembly
D1 USED Center Column Cover
D2 Center Column Rod
D2 USED Center Column Rod
D3 Center Column Brace Lock Knob
D3 USED Center Column Brace Lock Knob
L2 Tripod Strap
Editors Notes: The black versions are numbered in a different sequence from the silver or MVB, X versions, so 117B Version 5 is not interchangeable with 117MVB Version 5. The main casting parts and leg braces are NOT interchangeable with earlier models; as are the Center Columns, Cranks and Gears.
Check the parts list versions and the actual parts picture to ensire they look like what you need.
