190 version 4-Aluminum Tripod
Made after 1997-01-20
Also called Bogen 3001
This version has different parts from the 190, 190X and MT190 series tripods.
A2 USED Column Locking Shoe & Spring
B1 USED Main Casting Top Plate
B2 USED Main Casting Bottom Plate
C1 USED Leg Brace Assy - one bolt
C2 USED Leg Release Button - triangular
D1 USED Upper Leg Lock
D2 Upper Leg Lock Knob
D3 Leg Lock Cap Screw
D4 Leg Lock Hex Nut
E1 Lower Leg Lock
E1 USED Lower Leg Lock
E2 Leg Lock Knob
E3 Leg Lock Cap Screw
E4 Leg Lock Hex Nut
F USED Upper Leg Tube
F1 Padded Leg Tube Cushion
G USED Middle Tube
H Lower Leg Tube
H USED Bottom Leg Tube
I1 USED Rubber Foot
I1 Rubber Foot
I2 Retracable Spike Feet Set
K1 USED Center Column
K2 Center Column Cap -Single
K2 Center Column Cap -5 Pack
K3 Grub Screw
K3 Grub Screw - 5 Pack
Bogen 381 Leg Wrap
Editor note: All parts are interchangeable between versions 3 & 4 EXCEPT the leg brace (C1) and leg release buttons (C2). The leg release buttons and braces are NOT interchangeable.

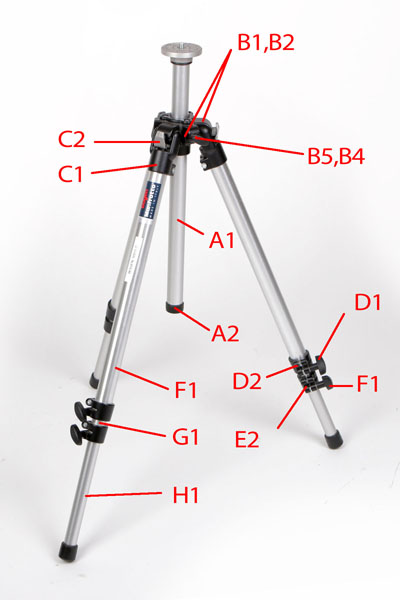

Click on the numbered link to see the actual part picture.
