190BWB Version 2-Aluminum Tripod
Made after 2004-09-02
For serial number from A0001056
Also known as Manfrotto 190BWB

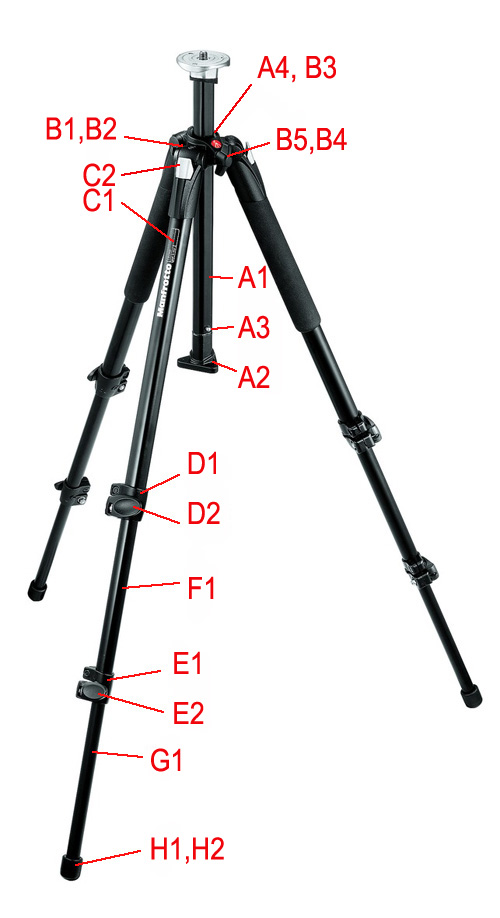

A1 Center Column Assy
A1 USED Center Column Assy
A2 Center Column Plug
A2 USED Center Column Plug
A3 Center Column Spring
A4 Center Column Cushion
B1 Main Casting Top Plate
B1 USED Main Casting Top Plate
B2 Main Casting Bottom Plate
B3 Strap Loop
B3 USED Strap Loop
B4 Center Column Locking Shoe
B4 USED Center Column Tension Shoe
B5 Center Column Lock Knob
B5 USED Center Column Lock Knob
C1 Leg Brace & Upper Leg Tube
C1 USED Leg Brace & Upper Leg Tube
C2 Leg Release Button
C3 Leg Wrench&Clip
C4 USED Leg Clips - 2 pack
D1 Upper Leg Lock
D1 USED Upper Leg Lock
D2 Snap Lever
E1 Lower Leg Lock
E2 Snap Lever
F1 Middle Leg Tube
G1 Lower Leg Tube
H1 Rubber Foot
(standard on this tripod)
H2 Spike Feet Accessory (set of 3)
H3 Suction Cup Feet Accessory (set of 3)
Editor note: Most parts are interchangeable between Versions. Leg Locks D1, E1 and replacement Snap Levers D2 and E2 are not interchangeable.Click on the link to see the actual part picture.
A1 USED Center Column Assy
A2 Center Column Plug
A2 USED Center Column Plug
A3 Center Column Spring
A4 Center Column Cushion
B1 Main Casting Top Plate
B1 USED Main Casting Top Plate
B2 Main Casting Bottom Plate
B3 Strap Loop
B3 USED Strap Loop
B4 Center Column Locking Shoe
B4 USED Center Column Tension Shoe
B5 Center Column Lock Knob
B5 USED Center Column Lock Knob
C1 Leg Brace & Upper Leg Tube
C1 USED Leg Brace & Upper Leg Tube
C2 Leg Release Button
C3 Leg Wrench&Clip
C4 USED Leg Clips - 2 pack
D1 Upper Leg Lock
D1 USED Upper Leg Lock
D2 Snap Lever
E1 Lower Leg Lock
E2 Snap Lever
F1 Middle Leg Tube
G1 Lower Leg Tube
H1 Rubber Foot
(standard on this tripod)
H2 Spike Feet Accessory (set of 3)
H3 Suction Cup Feet Accessory (set of 3)
Editor note: Most parts are interchangeable between Versions. Leg Locks D1, E1 and replacement Snap Levers D2 and E2 are not interchangeable.Click on the link to see the actual part picture.
