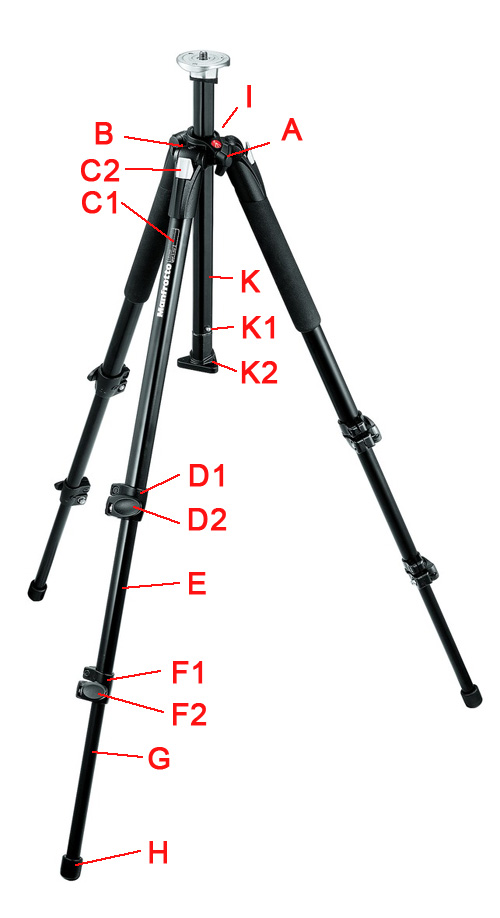

190XC3 version 1 Carbon Fiber Tripod

Made after 2008-01-22
For Serial Number From A1106749




A1 Center Column Lock Knob
A1 USED Center Column Lock Knob
A2 Center Column Brake Shoe
A2 USED Center Column Brake Shoe

B1 Main Casting Top Plate
B1 USED Main Casting Top Plate
B2 Main Casting Bottom Plate
B2 USED Main Casting Bottom Plate

C1 Leg Brace & Upper Leg Tube (not a stock item)
C2 Leg Extender Release Button

D1 Upper Leg Clamp Assy
D2 Upper Snap Lever
D3 Clamp Screw
D4 T25 Wrench

E Middle Leg Tube (not a stock item)

F1 Lower Leg Clamp Assy
F2 Lower Snap Lock Lever
F3 Clamp Screw
F4 T25 Wrench

G Lower Leg Tube (not a stock item)

H1 Rubber Foot (set of 3)
H2 Spike Feet Accessory (set of 3)
H3 Suction Cup Feet Accessory (set of 3)

I Strap Loop
I USED Strap Loop

J Cable Clip & Wrench

K Center Column Assy (not a stock item)
K1 Plug Spring
K2 Center Column Plug
K2 USED Center Column Plug
K3 Grub Screw Single
K3 Grub Screw 5 Pack
3 grub screws required

M Torx Wrench included with part D1 & F1)


Editor note: Click on the numbered link to see the actual part picture.
