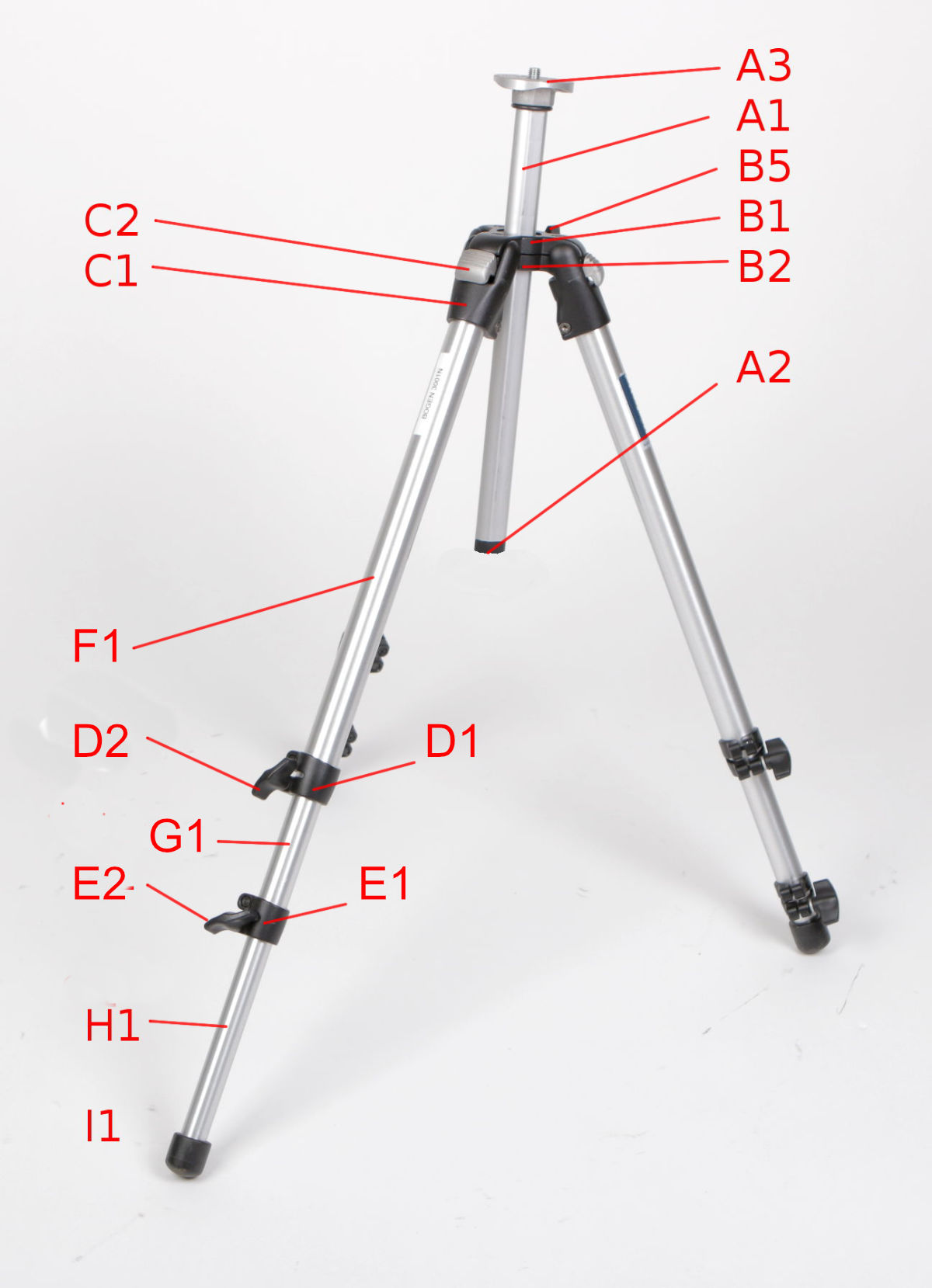

190D Version 3 - Aluminum Tripod

A1 USED Center Column
A2 USED Center Column Plug
A3 Grub Screw Single
A3 Grub Screw 5 Pack
3 grub screws required

B1 USED Main Casting Top Plate
B2 USED Main Casting Bottom Plate
B3 Strap Loop
B3 USED Strap Loop
B4 USED Center Column Locking Shoe
B5 USED Center Column Lock Knob
B5 Substitute Center Column Lock Knob

C1 Leg Brace
C2 Leg Release Button
C2 USED Leg Release Button

D1 Upper Leg Clamp
D1 USED Upper Leg Clamp
D2 Leg Clamp

E1 Lower Leg Clamp
E2 Leg Clamp

F1 Upper Leg Tube(not a stock item)

G1 Middle Leg Tube(not a stock item)

H1 Lower Leg Tube

I1 Rubber Foot
(standard on this tripod)

Editor note: All parts are interchangeable between versions 2 & 3 EXCEPT the Leg Clamps and Leg Tubes. Those on version 3 use different knobs than on version 2. You can completely replace the Leg Clamp assembly on version 3 with the version 2 Leg Clamps. The clamp knobs are NOT interchangeable.
Parts marked as USED are reconditioned and Only available as USED. Where there is a dual listing the one not showing USED is the NEW part. Item L for example.


See 190D Ver 3
Manufacturers Parts List
