190XB Version 1 Aluminum Tripod

Made after 2006-10-25
For Serial Number From A0629812 to A0865401

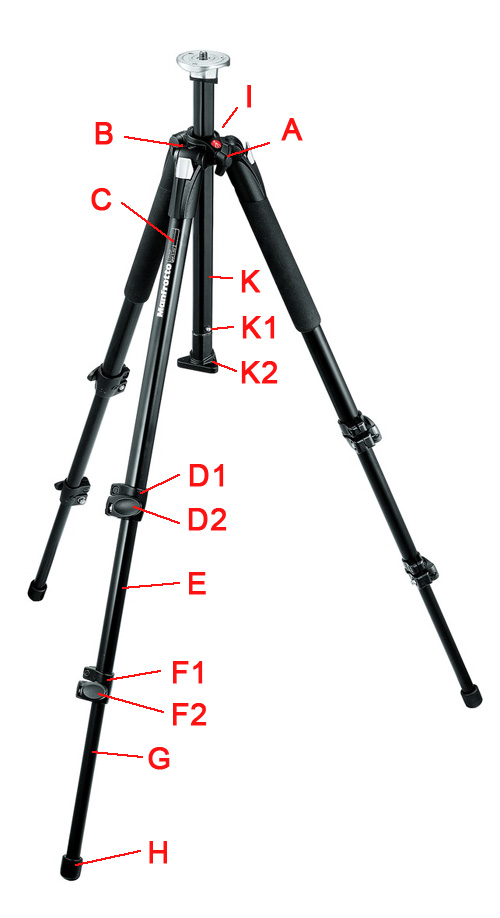

A1 Center Column Lock Knob
A1 USED Center Column Lock Knob
A2 Center Column Brake Shoe
A2 USED Center Column Brake Shoe

B1 Main Casting Top Plate
B1 USED Main Casting Top Plate
B2 Main Casting Bottom Plate (not a stock item)

C USED Complete Leg Brace Assembly

C Leg Brace & Upper Leg Tube
C USED Leg Brace & Upper Leg Tube
D1 Upper Leg Clamp Assy
D2 Upper Snap Lever
D3 Clamp Screw
D4 T25 Wrench

E Black Middle Leg Tube
E USED Black Middle Leg Tube

F1 Lower Leg Clamp Assy
F1 USED Lower Leg Clamp Assy
F2 Lower Snap Lock Lever
F3 Clamp Screw
F4 T25 Wrench

G Lower Leg Tube
G USED Black Lower Leg Tube

H1 Rubber Foot (set of 3)
H2 Spike Feet Accessory (set of 3)
H3 Suction Cup Feet Accessory (set of 3)

I Strap Loop
I USED Strap Loop

J Cable Clip & Wrench

K Center Column Assy
K USED Center Column Assy
K1 Plug Spring
K2 Center Column Plug
K2 USED Center Column Plug
K3 Grub Screw Single
K3 Grub Screw 5 Pack
3 grub screws required
K4 Rubber Spacer

M Torx Wrench included with part D1 & F1)


Editor note: Part B2 was changed from Version 1 to Version 2. Click on the numbered link to see the actual part picture.
