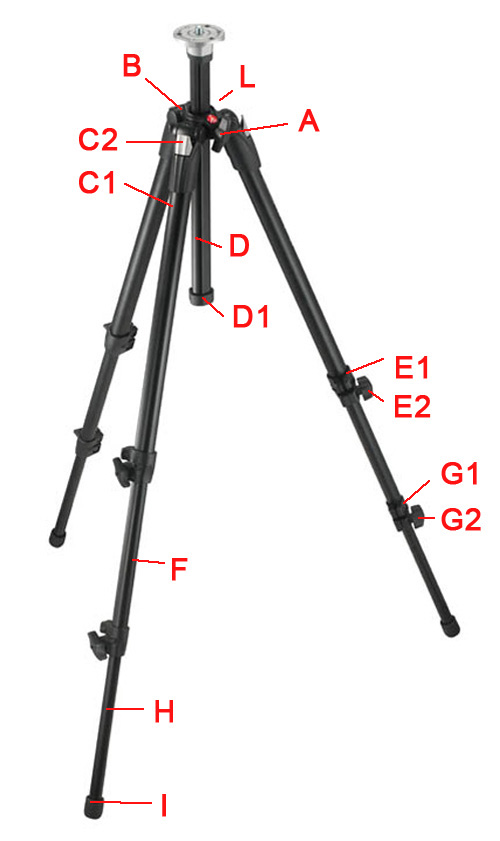

190XDB Version 4 Aluminum Tripod

A1 Center Column Lock Knob
A1 USED Center Column Lock Knob
A2 Center Column Brake Shoe
A2 USED Center Column Brake Shoe

B1 Main Casting Top Plate (not a stock item)
B2 Main Casting Bottom Plate (not a stock item)

C USED Complete Leg Brace Assembly

C1 Leg Brace & Upper Leg Tube
C1 USED Leg Brace & Upper Leg Tube
C2 Leg Extender Release Button
C2 USED Leg Extender Release Button

D Center Column Assy
D USED Center Column Assy
D1 Center Column Plug
D2 Grub Screw Single
D2 Grub Screw 5 Pack
3 grub screws required
D3 Rubber Spacer

E1 Upper Leg Clamp Assy
E1 USED Lower Leg Clamp
E2 Upper Lock Knob

F Black Middle Leg Tube
F USED Black Middle Leg Tube

G1 Lower Leg Clamp Assy
G2 Lower Lower Lock Knob

H Lower Leg Tube
H1 USED Lower Leg Tube
I1 Rubber Foot (set of 3)
I2 Spike Feet Accessory (set of 3)
I3 Suction Cup Feet Accessory (set of 3)
br>
J Torx Wrench included with part E1 & G1)

L Strap Loop
L USED Strap Loop




Editor note: Part C2 is different on versions 1 and 2 and changes on versions 3 and 4. Click on the numbered link to see the actual part picture.

See 190XDB ver 4
Manufacturers Parts List
