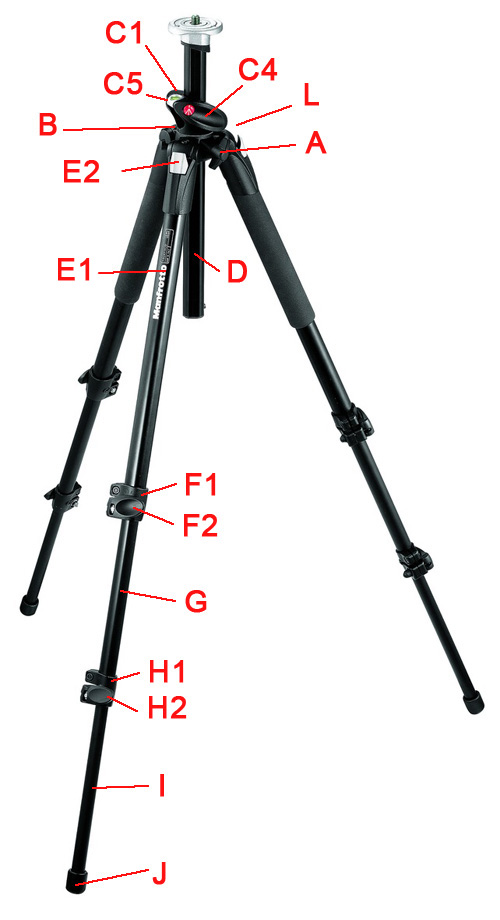

190XPROB Version 3 Aluminum Tripod

Made after 2008-09-26
For Serial Number A1588573


A1 Center Column Lock Knob
A1 USED Center Column Lock Knob
A2 Center Column Brake Shoe

B1 Main Casting Top Plate (not a stock item)
B2 Main Casting Bottom Plate (not a stock item)

C1 Left Side Pro Casting
C2 Pro Bushing
C3 Pro Rotation Bushing
C4 Right Side Pro Casting
C5 Bubble Level

D Center Column Assy
D USED Center Column Assy

D1 Grub Screw Single
D1 Grub Screw 5 Pack
3 grub screws required
D2 Rubber Spacer

E USED Complete Leg Brace Assembly

E1 Leg Brace & Upper Leg Tube
E1 USED Leg Brace & Upper Leg Tube
E2 Leg Extender Release Button
E2 USED Leg Extender Release Button

F1 Upper Leg Clamp Assy
F2 Upper Snap Lever
F3 Clamp Screw
F4 T25 Wrench

G Black Middle Leg Tube
G USED Black Middle Leg Tube

H1 Lower Leg Clamp Assy
H1 USED Lower Leg Clamp Assy
H2 Lower Snap Lock Lever
H3 Clamp Screw
H4 T25 Wrench

I Lower Leg Tube

J1 Rubber Foot (set of 3)
J2 Spike Feet Accessory (set of 3)
J3 Suction Cup Feet Accessory (set of 3)

K Cable Clip & Wrench

L Strap Loop
L USED Strap Loop



Editor note: Part B1 and B2 were changed from ver 1 to ver 2 and from 2 to 3
We do not know if they are interchangeable. Click on the numbered link to see the actual part picture.
