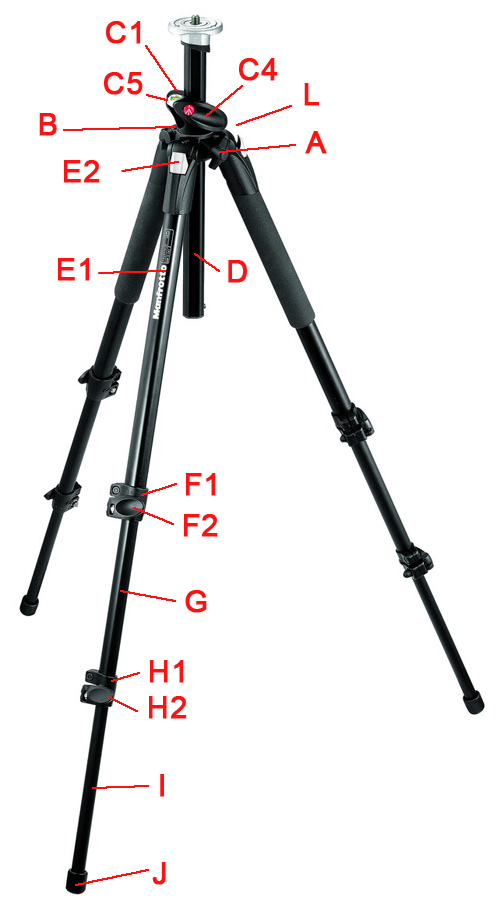

190XPROL Aluminum Tripod

Made after 2012-09-06
For Serial Number A3610002


A1 Center Column Lock Knob
A1 USED Center Column Lock Knob
A2 Center Column Brake Shoe
A3 Grub Screw Single
A3 Grub Screw 5 Pack
3 grub screws required

B1 Main Casting Top Plate
B2 Main Casting Bottom Plate
C1 Left Side Pro Casting
C2 Pro Bushing
C3 Pro Rotation Bushing
C4 Right Side Pro Casting
C5 Bubble Level

D Center Column Assy
D USED Center Column Assy
D1 Rubber Spacer

E1 Leg Brace & Upper Leg Tube
E2 Leg Extender Release Button
E2 USED Leg Extender Release Button

F1 Upper Leg Clamp Assy
F2 Upper Snap Lever
F3 Clamp Screw
F4 T25 Wrench

G Middle Leg Tube

H1 Lower Leg Clamp Assy
H1 USED Lower Leg Clamp Assy
H2 Lower Snap Lock Lever
H3 Clamp Screw
H4 T25 Wrench

I Lower Leg Tube

J1 Rubber Foot (set of 3)
J2 Spike Feet Accessory (set of 3)
J3 Suction Cup Feet Accessory (set of 3)

L Strap Loop
L USED Strap Loop


Editor note: Click on the numbered link to see the actual part picture.
