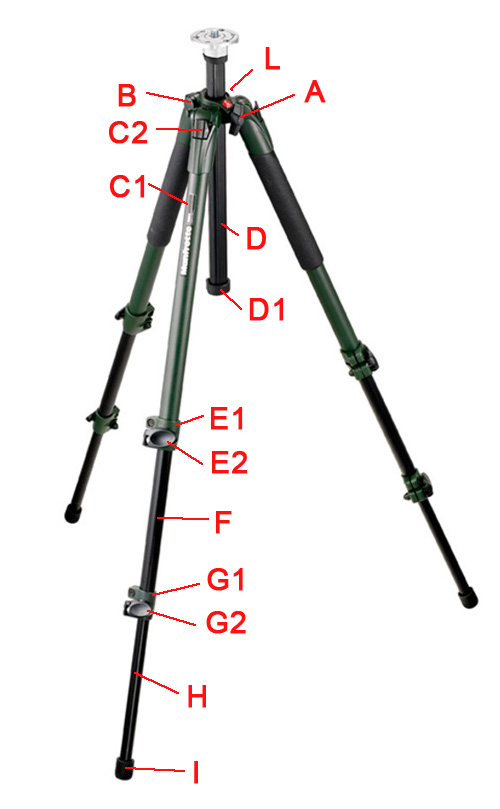

190XV Version 2 Aluminum Tripod
Made after 2007-03-13
For Serial Number From A0629812
A1 USED Center Column Lock Knob
A2 Center Column Brake Shoe
A2 USED Center Column Tension Shoe
A3 Grub Screw Single
A3 Grub Screw 5 Pack
3 grub screws required
B1 Main Casting Top Plate (not a stock item)
B2 Main Casting Bottom Plate (not a stock item)
C1 Leg Brace & Upper Leg Tube
C2 Leg Extender Release Button
C2 USED Leg Extender Release Button
D Center Column Assy (not a stock item)
D1 Center Column Plug
D2 Rubber Spacer
E1 Upper Leg Clamp Assy
E2 Upper Snap Lever
F Black Middle Leg Tube
F USED Black Middle Leg Tube
G1 Lower Leg Clamp Assy
G2 Lower Snap Lock Lever
H Lower Leg Tube
H USED Lower Leg Tube
I1 Rubber Foot (set of 3)
I2 Spike Feet Accessory (set of 3)
I3 Suction Cup Feet Accessory (set of 3)
J (not a part)
K Cable Clip & Wrench
L Strap Loop
L USED Strap Loop
Editor note: All versions parts are interchangable.
Part B1 and B2 were changed from ver 1 to ver 2 and from 2 to 3
Click on the numbered link to see the actual part picture.
