327RC2 Side Handle Ball Head

See 327RC2

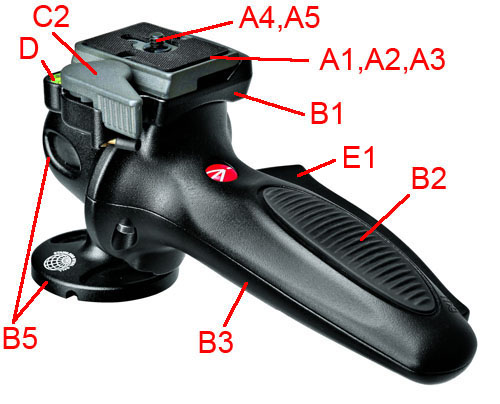

Disassembly List

A1 Quick Release 1/4-20 Screw
A2 Quick Release 3/8 Screw - Replaced by 200PL-14
A3 Quick Release 1/4 Anti-Rotate
A4 Quick Release 3/8 Anti-Rotate
A5 1/4 Thumbscrew
A6 3/8 Thumbscrew

B1 Top Plate Assembly (not a stock item)
B2 Top Handle Cover (not a stock item)
B3 Bottom Handle with Screws (not a stock item)
B4 Friction Bearing (not a stock item)
B5 Base and Ball (not a stock item)

C1 QR Safety Catch
C2 QR Cam Thumb Lever
C3 QR Cam Return Spring
C4 QR Cam Pivot Screw

D Side Bubble Level-Single
D Side Bubble Level-10 pack

E1 Main Control Trigger
E2 Trigger Cover
E3 Tension Control Knob (not a stock item)

F Assembly and Disassembly Component for Part E1

Editor note: Click on the numbered link to see the actual part picture. These parts are NOT interchangeable with the 222 or 324RC2 ball heads.
