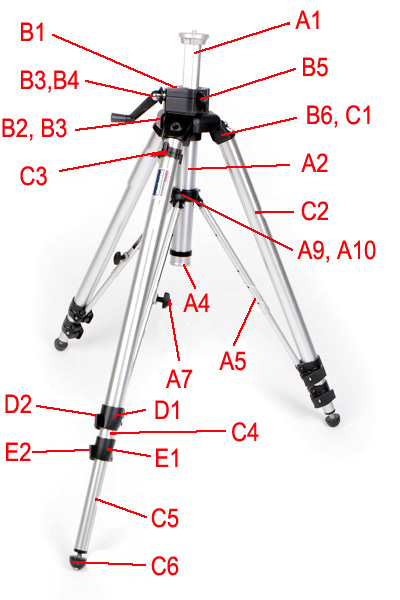

475 version 3 - Silver Aluminum Tripod
Made after 2004-09-02
This version has different parts from the 055, 075, and 190 Series Tripods
h3>This version has different parts from the 055MF, 055XB, 055XDB and 055XPROB
A2 Center Column Tubing
A3 USED Center Column Tubing Bezel
A4 Center Column Plug
A5 USED Spider Arm
A6 USED Lower Brace Tube
A7 Brace Lock Knob
A7 USED Brace Lock Knob
A8 Upper Brace Tube (not a stock item)
A9 USED Spider Assy with Arms
A9b USED Spider Assy with Arms
A10 Spider Locking Knob
A10 USED Spider Locking Knob
B1 Main Casting Top Plate
B1 USED Main Casting Top Plate
B2 USED Main Casting Bottom Plate
B3 Gear
B3 USED Gear
B4 Crank
B4 USED Crank
B5 Lock Knob
B5 USED Lock Knob
B6 USED Leg Brace Mount
B8 Top Plate Screws - set of 3
B9 Bubble Level
C1 Leg Brace
C2 USED Upper Leg
C3 Cable Clip
C4 USED Middle Leg
C5 USED Lower Leg Assy
C6 Rubber foot
D1 Upper Leg Clamp
D2 Upper Leg Clamp Snap Lever
E1 Lower Leg Clamp
E2 Lower Leg Clamp Snap Lever
Editor note: The Leg Clamps D2, E1, C5 use a TORX T25 size driver. All parts on the 475B ver 12 are the same as the 475 Silver Ver 12. Versions 2, 3 and 12 are different in that the Leg Clamp parts E1 and E2 are different and not interchangeable between Versions. The snap lock levers are NOT interchangeable.
