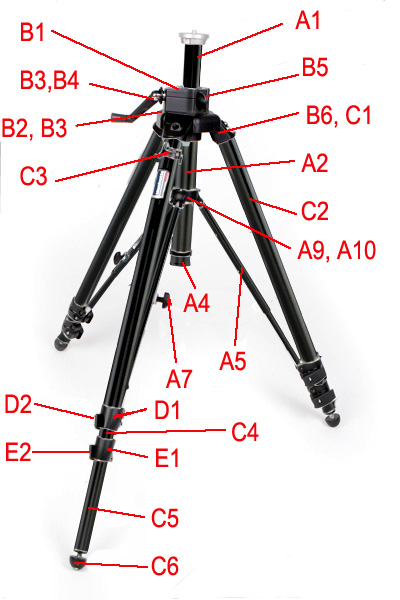

475B version 3 -Black Aluminum Tripod
Made after 2007-07-20
This version has different parts from the 055, 075, and 190 Series Tripods
A1 USED Black Center Column
A2 Center Column Tubing
A3 USED Center Column Tubing Bezel
A4 Center Column Plug
A4 USED Center Column Plug
A5 USED Black Spider Arm Assembly
A6 Black Lower Brace Tube (part of A5 Assy)
A7 Brace Lock Knob
A7 USED Brace Lock Knob
A8 Black Upper Brace Tube (part of A5 Assy)
A9 USED Black Spider Collar Assy with Arms
A10 Spider Locking Knob
B1 Main Casting Top Plate
B2 Main Casting Bottom Plate
B3 Gear
B3 USED Gear
B4 Elevation Crank
B4 USED Elevation Crank
B5 Lock Knob
B6 USED Leg Brace Mount
B8 Top Plate Screws - set of 3
B9 Bubble Level
C1 Leg Brace
C1 USED Leg Brace
C2 USED Black Upper Leg Tube
C3 Upper Leg Cable Clip
C4 USED Black Middle Leg Tube
C5 Lower Leg Assy (not a stock item)
C6 Rubber foot
D1 Upper Leg Clamp
D2 Upper Leg Clamp Snap Lever
E1 Used Lower Leg Clamp
E2 Lower Leg Clamp Snap Lever
F1 T25 Torx Wrench
Editor note: The Leg Clamps D2, E1, C5 use a TORX T25 size driver. All parts on the 475B ver 12 are the same as the 475 Silver Ver 12. Versions 2, 3 and 12 are different in that the Leg Clamp parts E1 and E2 are different and not interchangeable between Versions. The snap lock levers are NOT interchangeable.
