Manfrotto 484RC2 Ball Head
Made After 2003-11-26
USED parts are marked as USED, parts not marked as USED are new.
A1 Quick Release 1/4-20 Screw
A2 Quick Release 3/8 Screw - Replaced by 200PL
A3 Quick Release 1/4 Anti-Rotate
A4 Quick Release 3/8 Anti-Rotate
A5 1/4 Thumbscrew
A6 3/8 Thumbscrew
B1 Top Plate Assembly
(includes all C parts)
B2 QR Receiver Screw
C1 QR Safety Catch
C2 QR Cam Thumb Lever
C3 QR Cam Return Spring
C4 QR Cam Pivot Screw
D1 Ball (not a stock item)
D2 Main Casting - not a stock item
D3 Fixed Bearing - not a stock item
D4 Tripod Base - not a stock item
D5 Control Knob

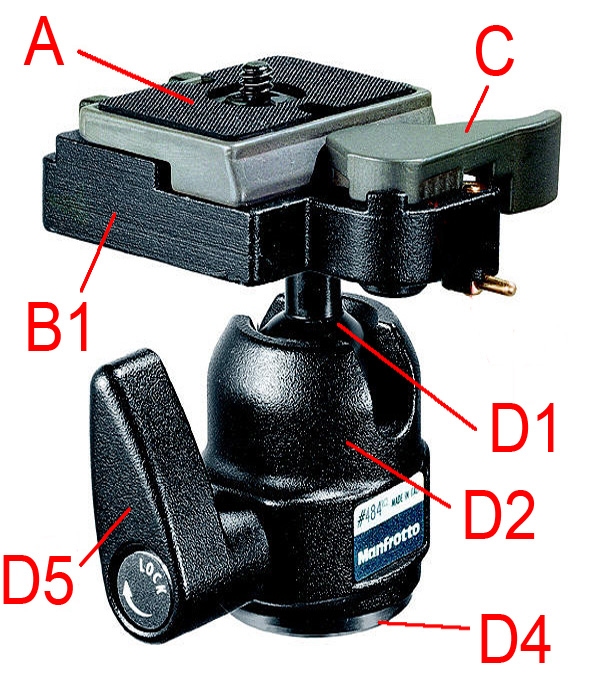

Editor note: All versions are interchangeable. Click on the numbered link to see the actual part picture.
These pictures are for illustration Only
