Manfrotto 486RC2 Ball Head
Made After 2003-11-26
USED parts are marked as USED, parts not marked as USED are new.
A1 Quick Release 1/4-20 Screw
A2 Quick Release 3/8 Screw - Replaced by 200PL-14
A3 Quick Release 1/4 Anti-Rotate
A4 Quick Release 3/8 Anti-Rotate
A5 1/4 Thumbscrew
A6 3/8 Thumbscrew
B1 Top Plate Assembly
(includes all C parts)
C1 QR Safety Catch
C1 USED QR Safety Catch
C2 QR Cam Thumb Lever
C3 QR Cam Return Spring
C4 QR Cam Pivot Screw
D1 Ball Assembly
D2 Main Casting
D3 Base Assembly
D4 Friction Shoe
D5 Control Knob

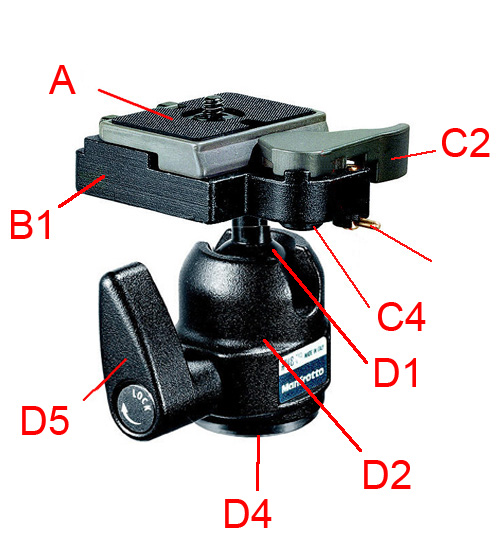

Editor note: All versions are interchangeable. Click on the numbered link to see the actual part picture.
These pictures are for illustration Only
