503 Version 2 - Video Pan Head

503 Head Parts are Different from 503HDV
Made about 2003-03-07
For Serial Number 503M5855

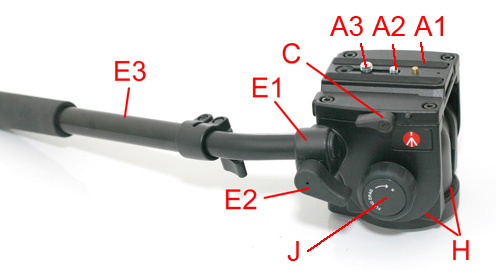

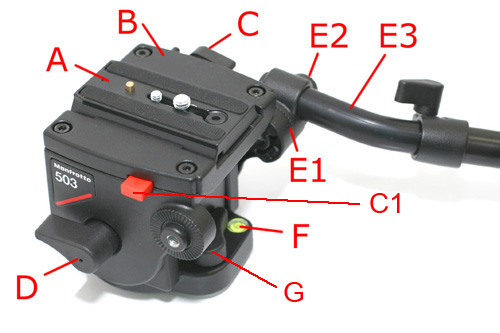

Manfrotto 503 Head Manfrotto 503 Head
A 501PL Quick Release Plate
A1 501PL Rubber Pads (set of 2)
A2 1/4 QR Replacment Screw
A3 3/8 QR Replacement Screw

B QR Receiver Top Plate

C QR Lock Knob
C1 QR Safety Lock Button

D Pan Lock Knob

E1 Pan Handle Clamp
E2 Pan Handle Clamp Knob
E2a Clamp Knob Retaining Washer
E3 Pan Handle Only

F Bubble Level

G1 Rotating Lock Knob
G2 Rotation Lock Shoe (not a stock item)

H Friction Disk

J Pan Control Knob


Editor note: Parts from the 503 are NOT Compatible with the 503HDV. These pictures are for illustration Only
Click on the numbered link to see the actual part picture.
