503LV Versions 2 Video Pan Bar

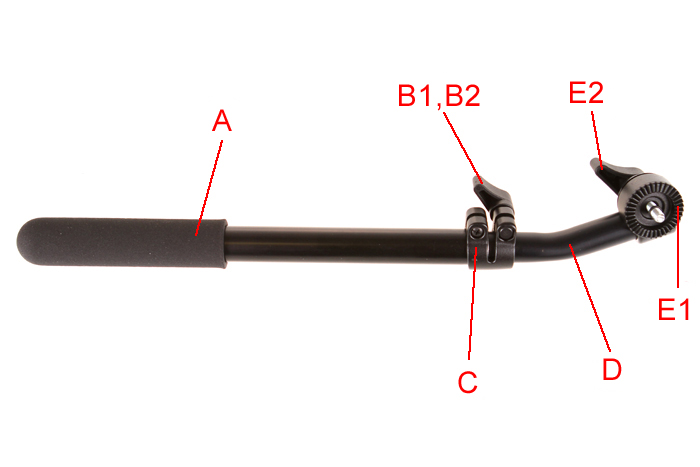

503HLV Pan Bar Complete Assembly
(Version 2)

A Pan Bar Handle

B1 Extension Knob & Screw
B2 Extension Knob Only

C Extension Clamp Assembly

D Curved Pan Bar

E1 Clamp
E2 Clamp Knob
E2a Clamp Knob Retaining Washer


Editor note:The screws and clamp parts from version 1 are not interchangeable with version 2. If you are missing parts B1, B2 or C discard and replace those parts with the version 2 assembly part C.
Click on the numbered link to see the actual part picture.

See 503LV ver 2
Manufacturers Parts List
