509HD Video Head
with Bowl Base

Made after 2011-04-26


Quick Release Plate for 509HD
509PLONG quick release plate
A 509PLONG QR Plate Assy

A1 Rubber Pads (set of 2)
A2 3/8-16 Screw (set of 2)
A3 1/4-20 Screw (set of 2)
A4 Rubber Stopper
A5 Anti-Rotation Pin

Quick Release Variations
500PLONG QR Plate
501PL QR Plate
501PLONG QR Plate
509PLONG QR Plate

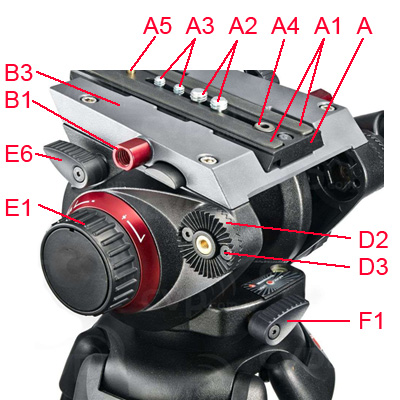

MANFROTTO 509HD SIDE VIEW

Manfrotto 509HD
B1 Accessory Pin
B2 QR Safety Lock
B3 QR Receiver - Top Plate
B4 QR Locking Shoe
B5 QR Lock Knob

C1 Side Plate (left side)
C2 Tension Knob

D1 Pan Handle with Clamp
D2 Pan Handle Locking Disk
D3 Retaining Screws for Pan Disk

E1 Tilt Tension Locking Knob
E2 Bezel (not a stock item)
E3 Pressure Rocker (not a stock item)
E4 Right Side Plate (not a stock item)
E5 Tension Spring (not a stock item)
E6 Tilt Lock Knob
E7 Fluid Disk (not a stock item)

F1 Pan Lock Knob (not shown)
F2 Pan Tension Knob (not a stock item)
F3 Main Casting (not a stock item)

G1 Level Handle






Editor note: Click on the numbered link to see the actual part picture.
