Manfrotto 559B Video Monopod

Made after 2003-09-30 & all Versions

USED parts are marked as USED, parts not marked as USED are new.

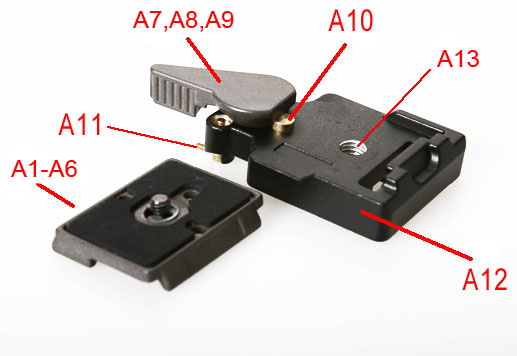

3299 quick release adapter

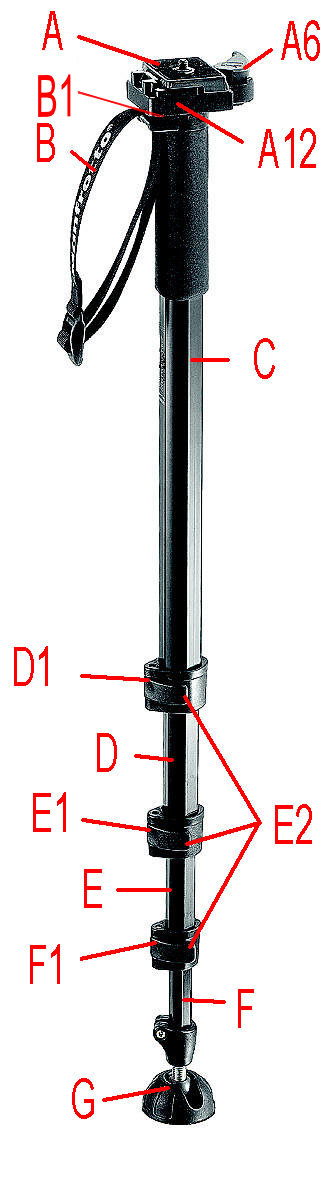

559B-2 MONOPOD

A1 Quick Release 1/4-20 Screw
A2 Quick Release 3/8 Screw - Replaced by 200PL-14
A3 Quick Release 1/4 Anti-Rotate
A4 1/4 Thumbscrew
A5 3/8 Thumbscrew
A6 QR Cam Thumb Lever
A7 QR Cam Return Spring
A8 QR Cam Pivot Screw
A9 3/8 to 1/4-20 Screw Adapter
A10 QR Safety Catch
A12 New Complete Base Plate Assembly

B Wrist Strap
B1 Original Cork Gripper
B1 New Rubber Gripper

C Top Tube (not a stock item)

D Upper Leg Tube (not a stock item)
D1 Upper Leg Clamp Assy

E Middle Leg Tube (not a stock item)
E1 Middle Leg Clamp Assy
E2 Lock Lever

F Bottom Leg Tube (not a stock item)
F1 Lower Leg Clamp Assy (discontinued no longer available)

G Rubber Foot (not a stock item)
Editor note: All Version are interchangeable. Item numbers listed in the index on the right column may not be shown on the picture because the part may be obscured or is inside in underneath another part and cannot be shown. Click on the link to see the actual part picture.
