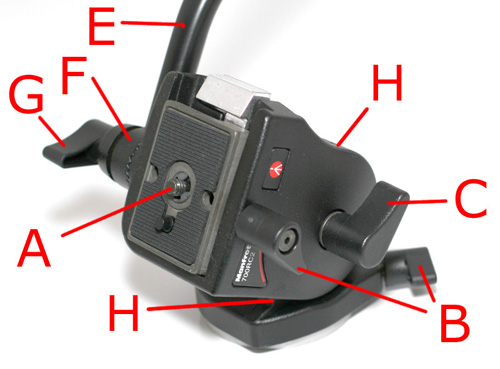

Manfrotto 700RC2 Video Head
Version made after 2004-02-04
USED parts are marked as USED, parts not marked as USED are new.
A1 Quick Release 1/4-20 Screw
A2 Quick Release 3/8 Screw - Replaced by 200PL-14 Above
A3 Quick Release 1/4 Anti-Rotate
A4 Quick Release 3/8 Anti-Rotate
A5 1/4 Thumbscrew
A6 3/8 Thumbscrew
B1 QR Locking Knobs
B2 Rotation Locking Knobs
C Pan/Tilt Locking Knobs
E Pan Handle - ver 6
E Pan Handle - ver 4 & 5
E1 Pan Handle & Clamp Assy - ver 4 & 5
F Pan Handle Clamp
G Pan Handle Locking Knob
H Fluid Disk
H Fluid Grease
Editor note: Part E, F anf G Were changed between versions 5 and 6. All other parts are the same between versions. Click on the numbered link to see the actual part picture.
