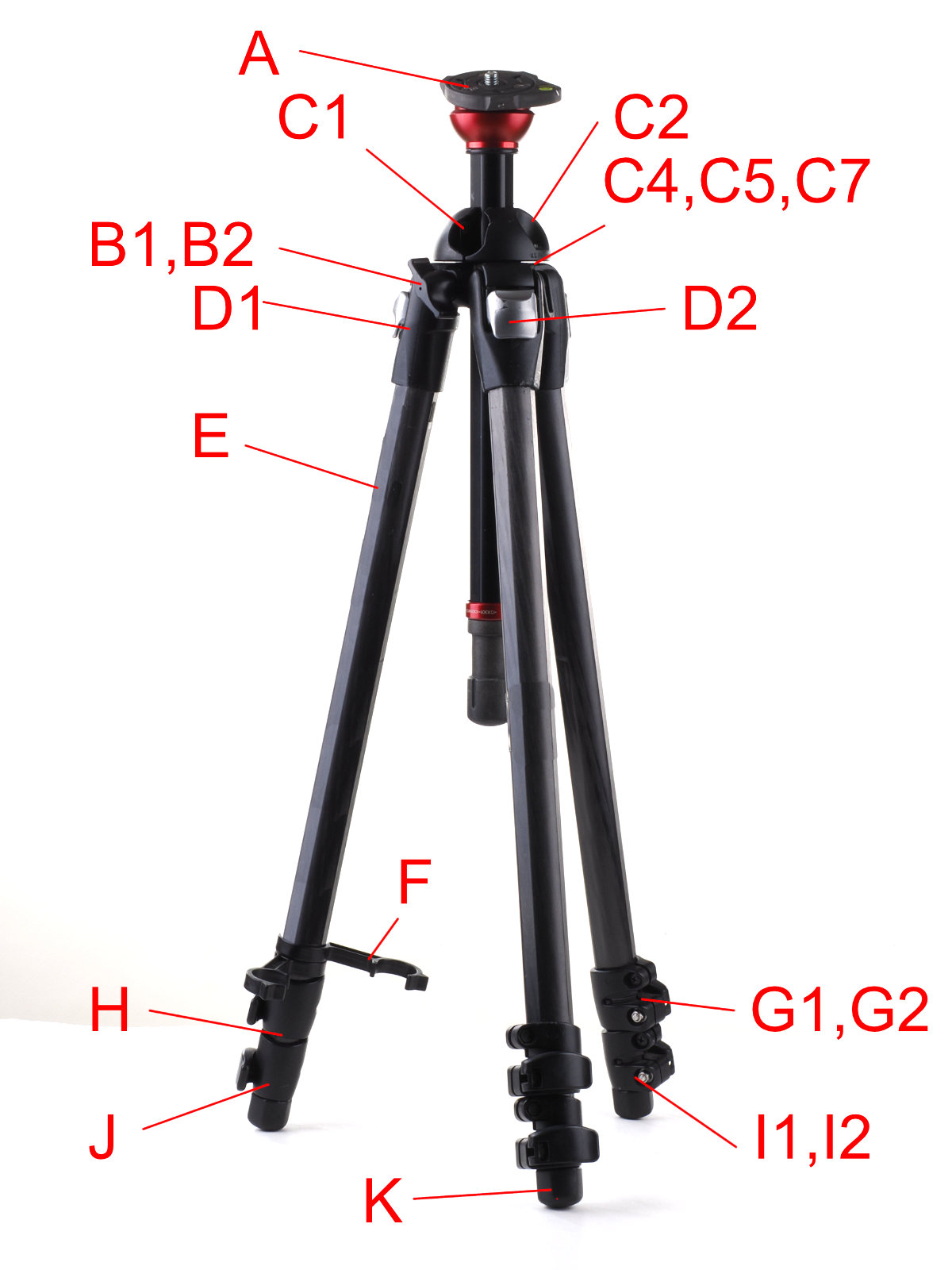

755MF3 - Mag Fiber Tripod
Made after 2004-11-02
For serial number from A0010001
A Center Column Assembly
Click Here for Center Column Parts
B1 Center Column Lock Knob
B2 Center Sliding Block
C1 USED Center Column Capstan Left (has label & protrudes on the bottom)
C2 USED Friction Bearing
C3 USED Center Column Capstan Right (recessed on the bottom)
C4 USED Main Casting Top Plate
C5 Main Casting Screw
C6 Strap Loop (not shown)
C6 USED Strap Loop (not shown)
C7 USED Main Casting Bottom Plate
D1 Leg Brace & Upper Tube
D2 USED Leg Extender Release Button
E Upper Leg Tube
F Leg Clips
G1 Upper Leg Clamp Assy
G2 Upper Snap Lever
H Middle Leg Tube
I1 USED Lower Leg Clamp Assy
I2 Lower Snap Lock Lever
J USED Lower Leg Tube
K1 Rubber Foot (single)
Editor note: The snap lock levers are o longer available and are replacements.
The center column knob is different from 754 and other 755 Series Tripods.
