Manfrotto MH496-BH Ball Head

Made after 2017-11-23

USED parts are marked as USED, parts not marked as USED are new.

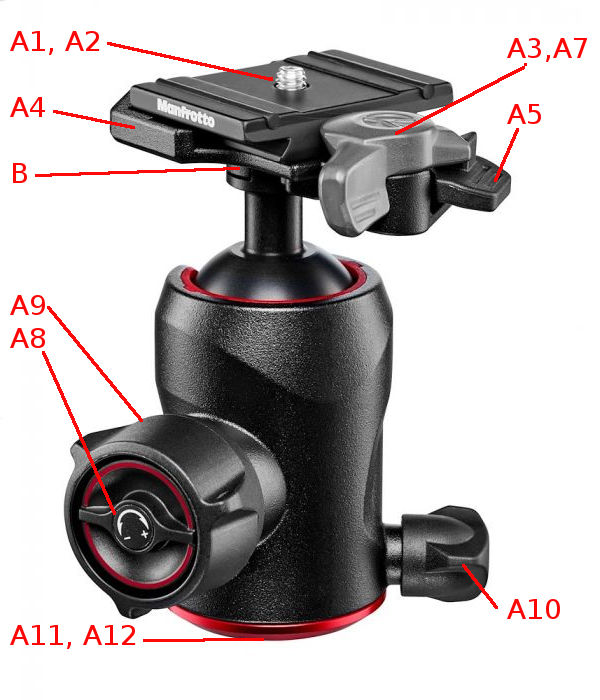

Manfrotto MH496-BH Ball Head

A1 Quick Release 1/4-20 Screw
A2 T25 Torx Wrench
A3 QR Lock Knob
A4 QR Receiver Plate
A5 QR Safety Lock
A6 QR Receiver Plate Screw
A7 Rotation Screw
A8 Tension Knob Bezel (grey color)
A9 Ball Tension Knob
A10 Pan Lock Knob
A11 Base Plate
A12 3/8 to 1/4 Screw Adpater

B Arca Compatible Top Plate Replacement



Editor note: Click on the numbered link to see the actual part picture.





Replace the old quick release top plate with a NEW Arca-Swiss AND 200PL quick relase top plate. Allows you to use the same plate on Manfrotto 200PL heads, or Arca-Swiss Compatible heads at the same time. No more switching quick releae plates!
