MKBFRA4G-BH Green BeFree Tripod Kit
Made after 2016-12-13

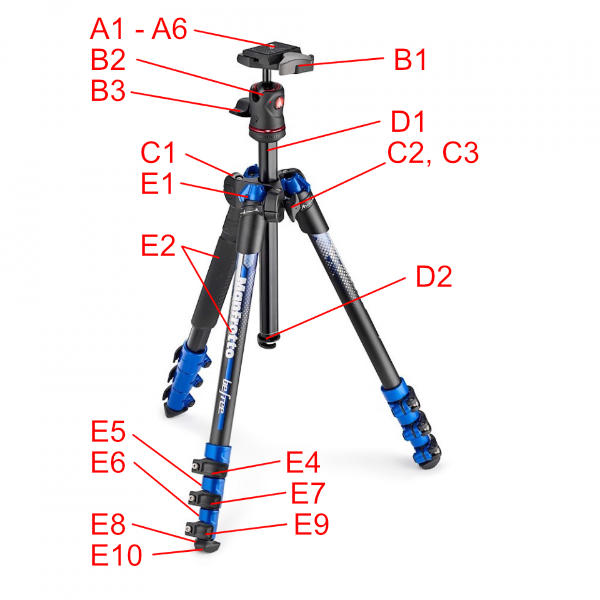

Head Parts
A1 Quick Release 1/4-20 ScrewA2 Quick Release 3/8 Screw - Replaced by 200PL-14 Above
A3 Quick Release 1/4 Anti-Rotate
A4 Quick Release 3/8 Anti-Rotate
A5 1/4 Thumbscrew
A6 3/8 Thumbscrew
B1 QR Receiver Plate
B2 Ball Assembly
B3 Ball Lock Knob
Tripod Parts
C1 Main Casting Spider AssyC1a Main Casting Screw Set - 3 Pack
C2 Center Column Locking Shoe
C3 Center Column Lock Knob
C4 Leg Bearing - individual
C4 Leg Bearing - set of 3
D1 Center Column (not shown)
D2 CTR Column Cap & Bumper(not shown)
D3 Short Center Column BFSCC
E1 SILVER Leg Position Lock (single)
E1 SILVER Leg Position Lock (set of 3)
E2 Upper Leg Tube & Lock Assy
E3 Upper Leg Tube & Lock with cushion (not available as a part)
E4 Upper Leg Clamp Lever
E5 Upper Middle Leg Tube & Lock Assy
E6 Middle Leg Tube & Lock Assy
E7 Middle Leg Clamp Lever
E8 Bottom Leg Tube
E9 Bottom Leg Clamp Lever
E10 Rubber Feet with Screw
E10 Spike Feet - 3 pack
E10 Suction Cup Feet - 3 pack
E11 Leg Clamp Sleeves (set of 3)
E12 Screw Cap (set of 10)
F T25 Torx Wrench
Editor note: Click on the numbered link to see the actual part picture.
