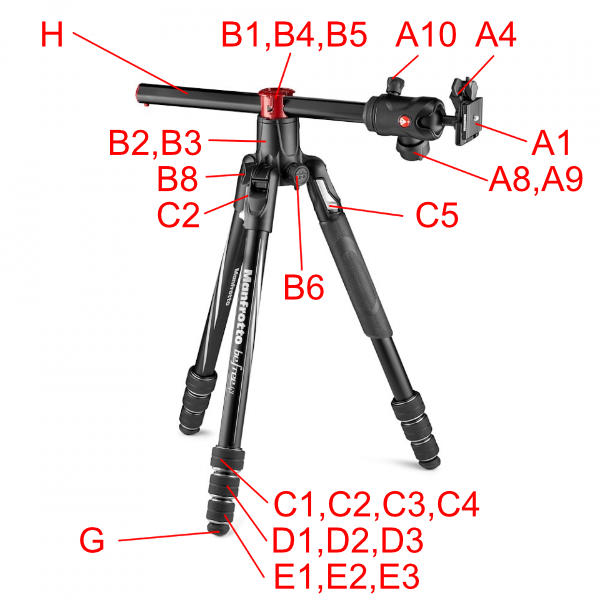

MKBFRA4GTXP-BUS Befree GT XPRO Aluminum Tripod

Head Parts

A1 Quick Release 1/4-20 Screw
A2 T25 Torx Wrench
A3 QR Lock Knob
A4 QR Receiver Plate
A5 QR Safety Lock
A6 QR Receiver Plate Screw
A7 Rotation Screw
A8 Tension Knob Bezel (grey color)
A9 Ball Tension Knob
A10 Pan Lock Knob
A11 Base Plate
A12 3/8 to 1/4 Screw Adpater

Tripod Parts

B1 Main Casting Rotation Collar
B2 Main Casting Top Plate
B3 Main Casting Bottom Plate
B4 Rotation Cam
B5 Rotation Guide
B6 Rubber Cover
B7 Assy Nut
B8 Center Column Lock Knob
B9 Strap Loop

C1 Leg Brace and Upper Tube
C2 Leg Clamping Bushing - set of 6
C3 Leg Clamping Ring - set of 3
C4 Locking Ring - individual
C4 Locking Ring - 3 pack
C5 Leg Position Lock (single)
C5 Leg Position Lock (set of 3)

D1 Middle Upper Leg Tube
D2 Leg Clamping Ring - set of 3
D3 Locking Ring - individual
D3 Locking Ring - 3 pack

E1 Middle Lower Leg Tube
E2 Leg Clamping Ring - set of 3
E3 Locking Ring - individual
E3 Locking Ring - 3 pack

F1 Bottom Leg Tube

G Rubber Feet - sinlge
G Rubber Feet - 3 pack

H Center Column


Editor note: Click on the numbered link to see the actual part picture.

See MKBFRA4GTXP-BH
Manufacturers Parts List
