MKBFRTA4CAM3-BH BeFree Tripod with Ball Head
Made after 2018-07-17

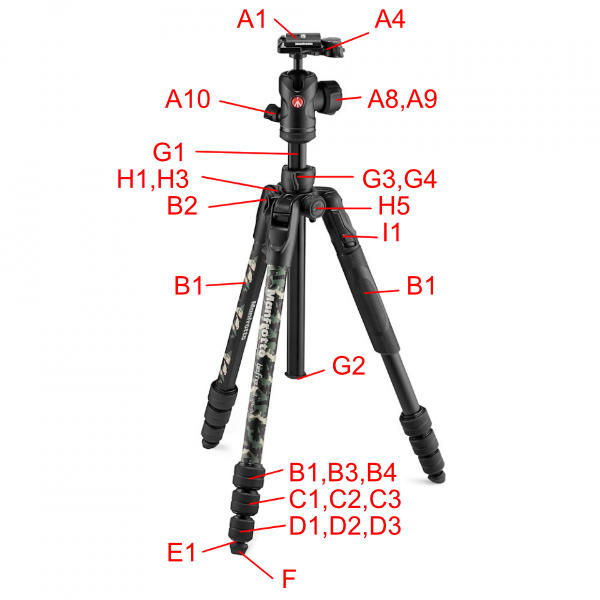

Head Parts
A1 Quick Release 1/4-20 ScrewA2 T25 Torx Wrench
A3 QR Lock Knob
A4 QR Receiver Plate
A5 QR Safety Lock
A6 QR Receiver Plate Screw
A7 Rotation Screw
A8 Tension Knob Bezel (grey color)
A9 Ball Tension Knob
A10 Pan Lock Knob
A11 Base Plate
A12 3/8 to 1/4 Screw Adpater
Tripod Parts
B1 Top Leg Tube & BraceB1 Top Leg Tube & Brace with Cushion
B2 Ring Bushing for Leg Brace
B3 Clamping Bushing
B4 Clamping Ring - set of 3
B4 Clamping Ring - single
C1 Upper Middle Leg Tube
C2 Clamping Bushing for Upper Middle Tube
C3 Upper Middle Clamping Ring - set of 3
C3 Upper Middle Clamping Ring - single
D1 Lower Middle Leg Tube
D2 Clamping Bushing for Lower Middle Tube
D3 Lower Middle Clamping Ring - set of 3
D3 Lower Middle Clamping Ring - single
E1 Bottom Leg Tube
F Rubber Feet - set of 3
F1 Spike Feet - 3 pack
F2 Suction Cup Feet - 3 pack
G1 Center Column
G2 CTR Column Cap & Bumper(not shown)
G3 Center Column Locking Collar
G4 Center Column Locking Collar
H1 Top Main Casting Spider Assy
H2 Main Casting Screws
H3 Bottom Main Casting Spider Assy
H4 Replacemnt Accessory Nut
H5 Rubber Accessory Port Cover
I1 Leg Position Lock (set of 3)
Editor note: Click on the numbered link to see the actual part picture. These parts are not all compatible with outher BeFree Tripods
