MVH500 Video Head versions 1

MVH500A Parts

The base on the MVH500A unit has a rounded bowl bottom - the MVH500AH is flat.

• B1 QR Receiver Top Plate MVH500A
• B1 QR Receiver Top Plate MVH500AH
• B2 Screw Cover - single
• B2 Screw Cover - 10 pack
• B3 QR Plate Lock Shoe
• B4 Main Baffle (not a stock item)
• B5 QR Plate Lock Knob - Single
• B5 QR Plate Lock Knob - 5 Pack
• B6 Top Plate Screw - Single
• B6 Top Plate Screw - 10 Pack
• C1 Main Pivot Screw
• C2 Left Side with Spring (not a stock item)
• C3 Main Housing (not a stock item)
• C4 Side Bubble Level-Single
• C4 Side Bubble Level-10 pack
• C5 Pan Fluid Disk (uses 2 in head)
• C6 Right Side (not a stock item)
• C7 Bezel Ring (not a stock item)
• C8 Face Plate(not a stock item)
• C9 Label (not a stock item)
• C10 Counter Spring (not a stock item)
• D1 Rotating Lock Knob
• D2 Rotation Lock Shoe
• E1 MVH500AH Base Plate (not a stock item)
• H Pan Handle Assembly
• H1 Clamp Knob
H1a Knob Retaining Washer

• H2 Clamp
• H3 Pan Bar
• I Fluid Grease

MVH500A with Bowl base
Complete Head Assembly (replaced by MVH502A)
Click Here To Go To That Page
MVH500AH with Flat Base
Complete Head Assembly(replaced by MVH502AH)
Click Here To Go To That Page

MVH500AH Parts

• B1 MVH500AH QR Receiver Top Plate
• B2 Screw Cover - single
• B2 Screw Cover - 10 pack
• B3 QR Plate Lock Shoe (not a stock item)
• B4 Main Baffle (not a stock item)
• B5 QR Plate Lock Shoe
• B6 Screw
• C1 Main Pivot Screw
• C2 Left Side with Spring (not a stock item)
• C3 Main Housing (not a stock item)
• C4 Side Bubble Level-Single
• C4 Side Bubble Level-10 pack
• C5 Pan Fluid Disk (uses 2 in head)
• C6 Right Side (not a stock item)
• C7 Bezel Ring (not a stock item)
• C8 Face Plate(not a stock item)
• C9 Label (not a stock item)
• D1 Rotating Lock Knob
• D2 Rotation Lock Shoe
• E2 Base Plate with Bowl (not a stock item)
• E3 Bowl Tightening Screw
• H Pan Handle Assembly
• H1 Clamp Knob
• H1a Knob Retaining Washer
• H2 Clamp
• H3 Pan Bar
• I Fluid Grease

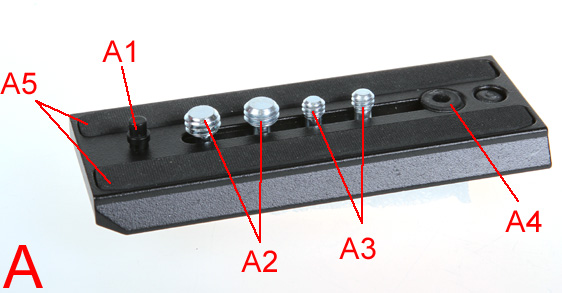

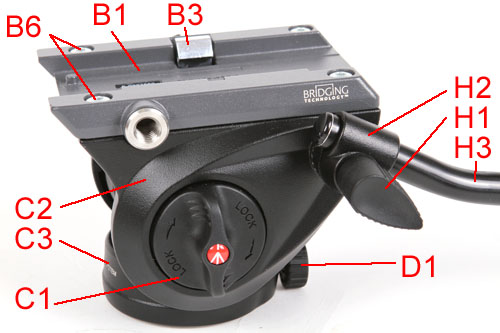

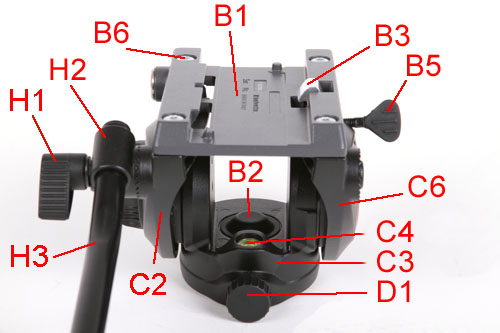

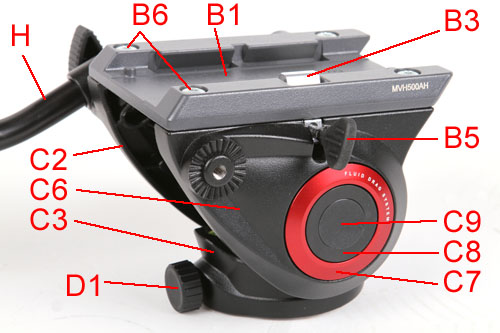

Editor note: Click on the numbered link to see the actual part picture. All Parts are the same, except D2/E2 which is the bowl or flat base part MVH500AH With Flat Bottom Base
The Parts for Versions 1 and 2 are fully interchangeable The MVH500AH is also called the R1036,95 head

See MVH500A ver 1
Manufacturers Parts List See MVH500A ver 2
Manufacturers Parts List

See MVH500AH ver 1
Manufacturers Parts List See MVH500AH ver 2
Manufacturers Parts List
