MVKBFRL-LIVE BeFree Live Tripod Kit

Made after 2013-03-28

Quick Release Plate

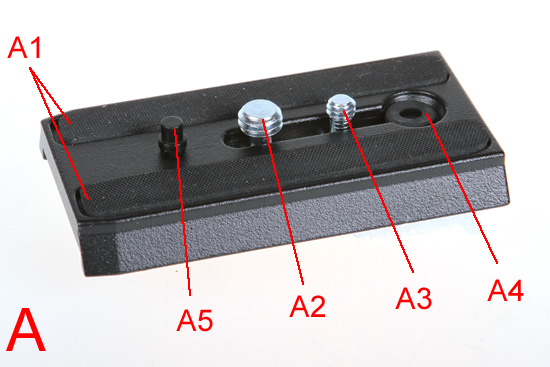

Manfrotto 501PL quick release plate

  • A 501PL QR Plate Assy
  • A1 Rubber Pads (set of 2)
  • A2 3/8-16 Screw (set of 2)
  • A3 1/4-20 Screw (set of 2)
  • A4 Rubber Stopper
  • A5 Anti-Rotation Gold Pin
  • A5 Anti-Rotation Black Pin
    Some Versions of 501PL use the Black Plastic Anti-Rotation Pin

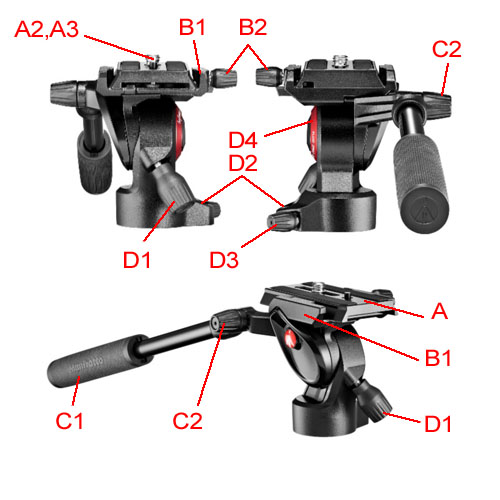

    • Manfrotto MVH400AH BeFree Live Head



  • B1 QR Plate Receiver
  • B2 QR Locking Knob (set of 2)
  • B3 Body Casting
  • C1 Pan Handle
  • C2 Pan Handle Knob
  • D1 Pan Lock Knob
  • D2 Side Bubble Level-Single
  • D2 Side Bubble Level-10 pack
  • D4 Bezel Cover
    • Editor note: Click on the numbered link to see the actual part picture.

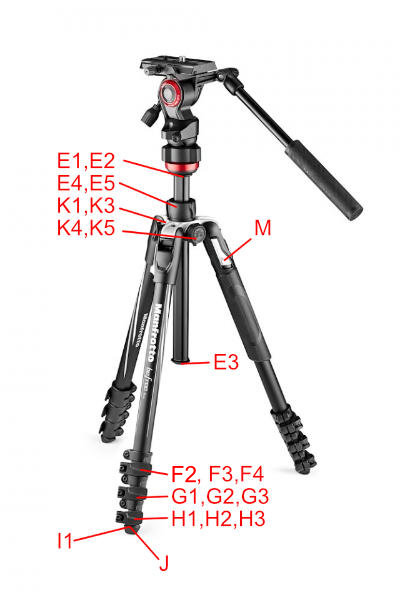

    BeFree Live Tripod

    Tripod Parts

  • E1 Center Column
  • E2 Center Column Bumper
  • E3 Center Column End Cap
  • E4 Center Column Locking Collar
  • E5 Center Column Bearing (not shown)
  • F1 Upper Leg Tube & Brace Assy
  • F2 Leg Bearing - set of 6
  • F3 Leg Clamp
  • F4 Leg Clamp Lock Lever
  • G1 Upper Middle Leg Tube
  • G2 Leg Clamp
  • G3 Leg Clamp Lock Lever
  • H1 Lower Middle Leg Tube
  • H2 Leg Clamp
  • H3 Leg Clamp Lock Lever
  • I1 Bottom Leg Tube
  • J Rubber Feet - set of 3
  • K1 Upper Casting
  • K2 Main Casting Screws - 3 pack
  • K3 Lower Casting
  • K4 Rubber Cap
  • K5 Accessory Nut
  • L1 T20 Torx Wrench
  • L2 T25 Torx Wrench
  • M Leg Position Lock (set of 3)
