MVKBFRTC-LIVE BeFree Live Tripod Kit
Made after 2018-01-23
Quick Release Plate
A 501PL QR Plate Assy
A1 Rubber Pads (set of 2)
A2 3/8-16 Screw (set of 2)
A3 1/4-20 Screw (set of 2)
A4 Rubber Stopper
A5 Anti-Rotation Gold Pin
A5 Anti-Rotation Black Pin
Some Versions of 501PL use the Black Plastic Anti-Rotation Pin
B1 QR Plate Receiver
B2 QR Locking Knob (set of 2)
B3 Body Casting
C1 Pan Handle
C2 Pan Handle Knob
D1 Pan Lock Knob
D2 Side Bubble Level-Single
D2 Side Bubble Level-10 pack
D4 Bezel Cover
Editor note: Click on the numbered link to see the actual part picture.

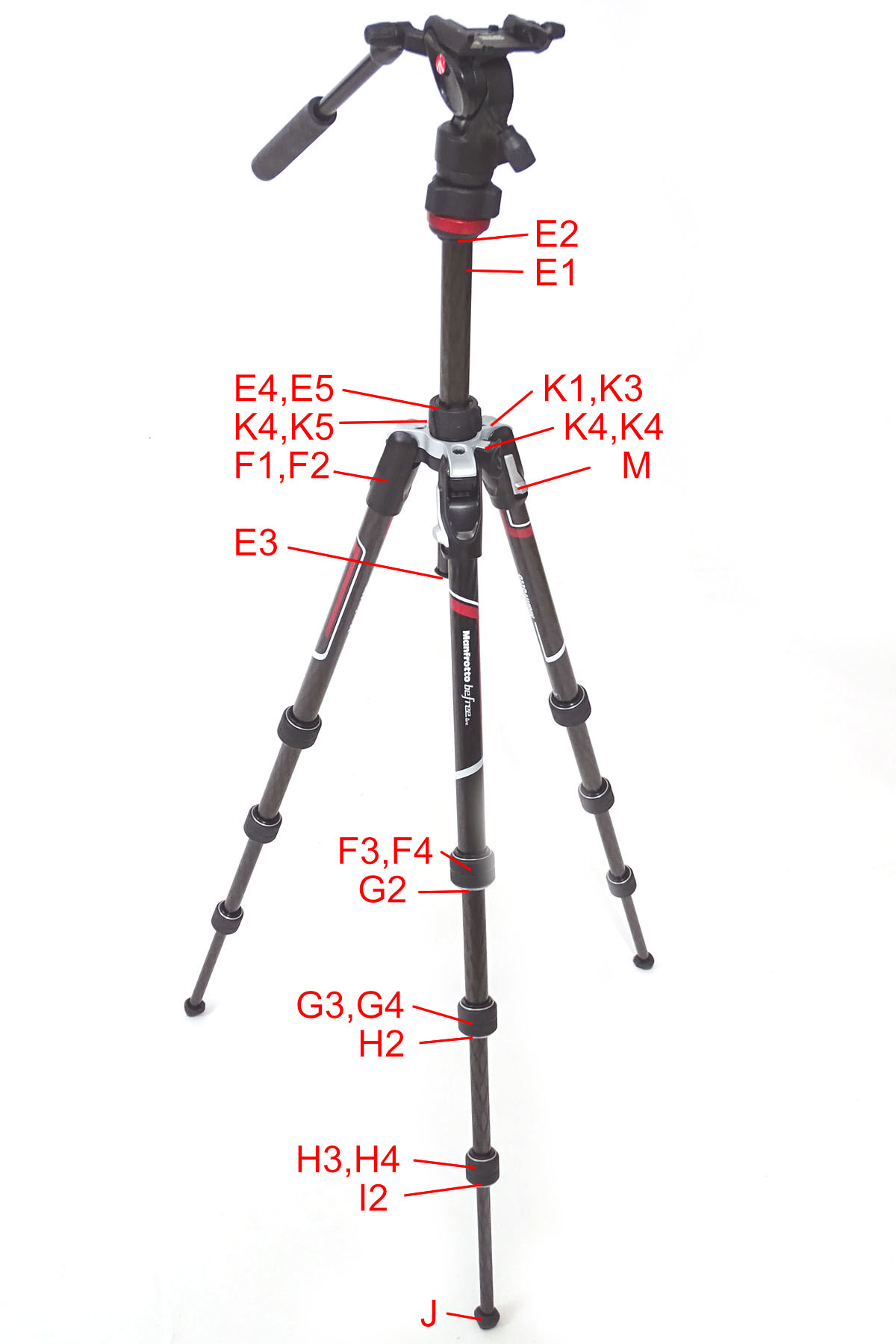

Tripod Parts
E1 Center Column ReplacemenetE2 Center Column Bumper
E3 Center Column End Cap
E4 Center Column Locking Collar
E5 Center Column Bearing (not shown)
F1 Upper Leg Tube & Brace Assy
F2 Leg Bearing - set of 6
F3 Leg Clamping Ring - set of 3
F4 Leg Clamp Twist Ring - individual
F4 Leg Clamp Twist Ring - set of 3
G1 Upper Middle Leg Tube
G2 Hose Clamp - set of 3
G3 Leg Clamping Ring - set of 3
G4 Leg Clamp Twist Ring - individual
G4 Leg Clamp Twist Ring - set of 3
H1 Lower Middle Leg Tube
H2 Hose Clamp - set of 3
H3 Leg Clamping Ring - set of 3
H4 Leg Clamp Twist Ring - individual
H4 Leg Clamp Twist Ring - set of 3
I1 Bottom Leg Tube
I2 Hose Clamp - set of 3
J Rubber Feet - set of 3
K1 Upper Main Casting
K2 Casting Screws
K3 Lower Main Casting
K4 Rubber Cover
K5 Accessory Screw
L T25 Torx Wrench
M Leg Position Lock (set of 3)
Editor note: Click on the numbered link to see the actual part picture.
