MVMXPROA4577 Video Monopod with Fluid Base
Made after 2016-10-05
Buy MVMXPROA4577 Monopod
Buy 577 QR Adapter & Plate Assy

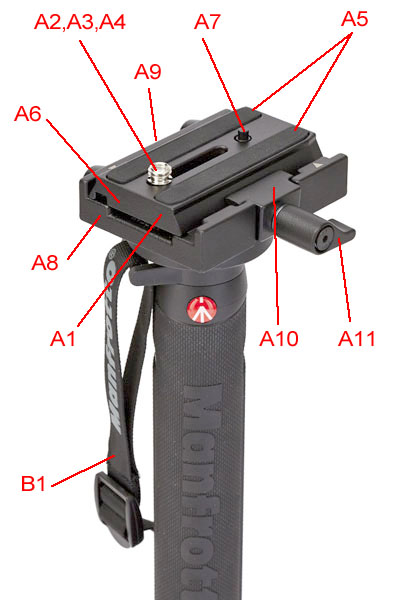

A1 501PL Quick Release Plate
A2 Rubber Stopper (not shown)
A3 3/8-16 Screw (set of 2)
A4 1/4-20 Screw (set of 2)
A5 Rubber Grippers (set of 2)
A6 501 Metal Plate (not in stock)
A7 Anti-Rotation Pin & Spring
A8 577 Base (not a part)
A9 Safety USED Center Column Spider
A10 Lock Knob & Shoe
A11 Locking Knob Only

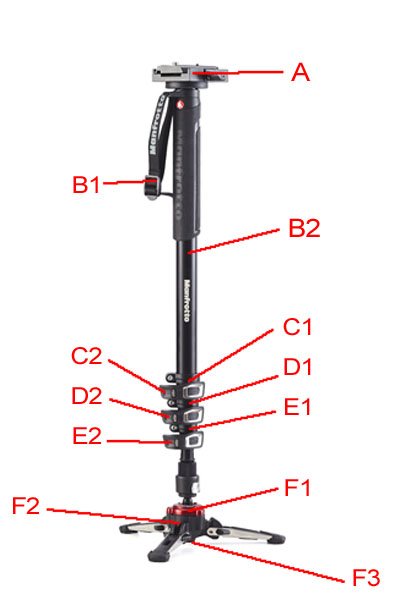

B1 Wrist Strap
B2 Top Leg Tube (not a stock item)
B3 Upper Middle Tube
B4 Lower Middle Tube
C1 Upper Leg Clamp
C2 Upper Snap Lever
C3 Clamp Screw
C4 T25 Wrench (not shown)
D1 Middle Leg Clamp
D2 Middle Snap Lever
D3 Clamp Screw
D4 T25 Wrench (not shown)
E1 Bottom Leg Tube and Lock Assy
E2 Lower Snap Lever
E3 Clamp Screw
E4 T25 Wrench (not shown)
F1 Fluid Cartridge for Crow Foot
F1a Assembly Screws
F2 Crow Foot
F3 Crow Foot Rubber Bumper
G Rubber Foot (single)
G Rubber Foot (3 pack)
For monopod use without Crow Foot attached
H Wrist Strap
I Cable Clip & Wrench (not shown)
Editor note:
Click on the numbered link to see the actual part picture.
See MVMXPROA4577
Manufacturers Parts List
