Manfrotto MVTSNGFC 635 Fast Single Tripod Carbon Fiber

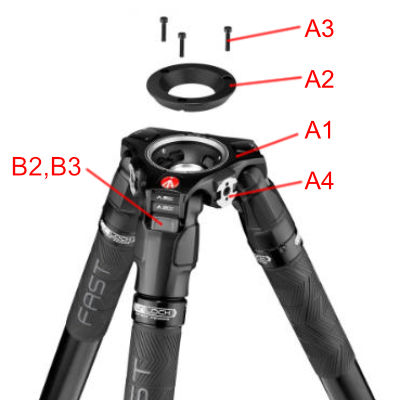

A1 Main Casting
A2 Bowl Adapter
A3 Mounting Screws for Bowl Adapter
A4 Accessory Port (see I parts below)



B1 Leg Retainer
B2 Leg Pivot Release
B2b Leg Pivot Release Bullet Catch
B3 Fast Handle - single
B4 Not a part

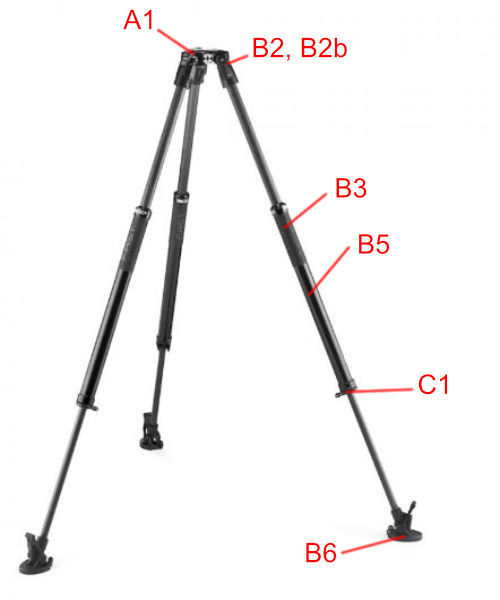

B5 Leg Assembly Without Label

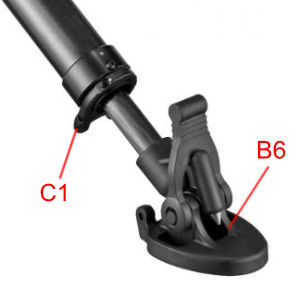

B6 Rubber Foot




C1 Foot Retainer


D1 Leg Retaining Ring
D2 Compression Collar
D3 Upper Leg Shim
D4 Compression Collar
D5 Lower Leg Shim

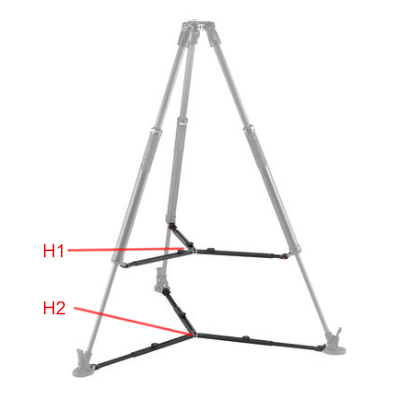

H1 Middle Spreader

H2 2 in 1 Spreader

H2 The 2 in 1 Spreader is both a mid level speader and a ground level spreader.
Mid Level SpreaderBuilt-in mid-level spreader adds anti-torsional rigidity and stops the tripod legs from accidentally being knocked wider apart. Compared to a ground-level spreader or dolly, the mid-level spreader has the advantage that it stays well out of the mud and dirt and is more suitable for use on uneven terrain.
Ground Level SetThis new feature allows you to remove the center column to save weight and get the camera closer to the ground. Uses existing components: the upper disc with reversible 1/4" - 3/8" bolt and the column hook assembly: Remove column and fix the disk directly to the upper casting using the column hook. No tools needed.

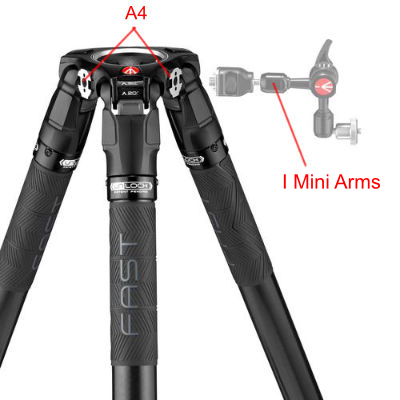

I1 Micro Friction Arm
I2 Micro Friction Arm Kit
I3 Anti-Rotate Micro Friction Arm
I4 Mini Friction Arm Kit





Misc Parts

G1 T20 Torx Wrench
G2 Fast Handle




Editor note: Click on the numbered link to see the actual part picture.

See MVTSNGFC
Manufacturers Parts List
