MH054M0-Q2 version 2 Ball Head
Made about 2012-09-12
For Serial Number C0000001
A1 Quick Release 1/4-20 Screw
A2 Quick Release 3/8 Screw - Replaced by 200PL-14 Above
A3 Quick Release 1/4 Anti-Rotate
A4 1/4 Thumbscrew
A5 3/8 Thumbscrew
A6 Top Plate Assembly
A7 Side Bubble Level-Single
A7 Side Bubble Level-10 pack
A8 Thumb Lever
A9 QR Safety Pin
A10 Top QR Plate Receiver Assembly
(not a stock item)
B1 Main Casting
B2 Friction Ring (not shown)
B3 Ball
B4 Plastic Ball Seat and Washers
B5 Bevel Washer
B6 Ball Seat
B7 Friction Assembly
B8 Base with tripod Screw
B9 Bearing (6 pieces)
B10 Retaining Pin
B11 Selector
B6-B11 Base and Ball Parts are not pointed since they are all mostly internal.
C Pan Rotation Lock Knob
D Ball Control Lock Knob
F Ball Tilt Limiter
E1 Pan Tension Knob (not shown)
E2 Pan Tension Shaft (not shown)

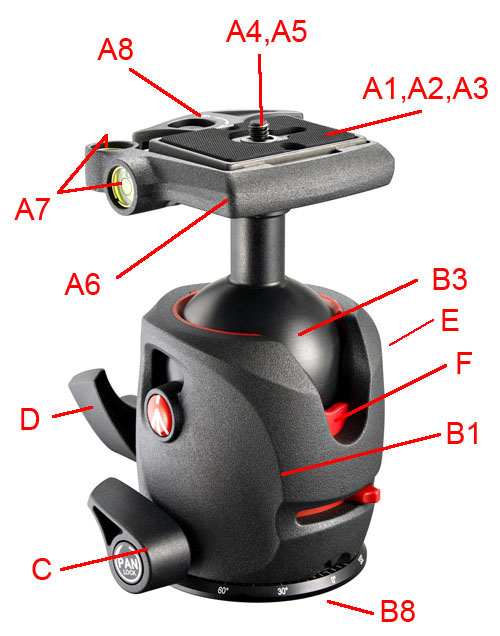

Editor note: Click on the numbered link to see the actual part picture.
