MH057M0-RC4 Ball Head

Made about 2011-05-03
For Serial Number C0000001


A1 Quick Release 1/4-20 Screw
A2 1/4 Thumbscrew
A3 3/8 Thumbscrew
A4 Bubble Level (uses 2 bubbles)
A5 Thumb Lever
A5 USED Thumb Lever
A6 Top Plate Assembly (not a stock item)
A7 QR Safety Pin
A8 Thumbscrew Pivot and Nut

Items B1 to B11 are mostly internal parts
B1 Main Casting (not a stock item)
B2 Friction Ring (not a stock item)
B3 Ball (not a stock item)
B4 Ball Seat & Washers (not a stock item)
B5 Bevel Washer (not a stock item)
B6 Ball Seat (not a stock item)
B7 Friction Assembly
B8 Base Plate (not a stock item)
B9 Bearings (not a stock item)
B10 Retaining Pin (not a stock item)
B11 Bullet Catch (not a stock item)

C Pan Rotation Lock Knob

D Ball Control Lock Knob

E1 Pan Tension Knob
E2 Pan Tension Shaft
F Ball Tilt Limiter (not a stock item)

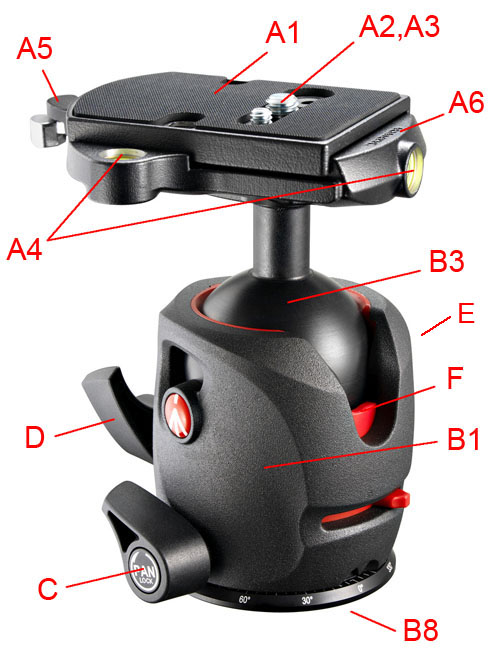

Editor note: Click on the numbered link to see the actual part picture.

Editor note: Parts marked as USED are reconditioned and Only available as USED. Where there is a dual listing the one not showing USED is the NEW part. Only the Quick Release Plates are interchangeable between the different versions.
Click on the numbered link to see the actual part picture.
