MH804-3W version 2 -3 Way Pan Head

MH804-3W Complete Head

A1 Quick Release 1/4-20 Screw
A2 Quick Release 3/8 Screw - Replaced by 200PL-14
A3 Quick Release 1/4 Anti-Rotate
A4 Quick Release 3/8 Anti-Rotate
A5 1/4 Thumbscrew
A6 3/8 Thumbscrew


B1 QR Plate Receiver Assembly
B2 Bubble Level - single
B2 Bubble Level - 10 pack
B3 QR Lever Set
Includes parts B4,B5,B6,B7
B4 QR Safety Catch (not available separatly)
B5 QR Thumb Lever Axle
B6 QR Thumb Lever Return Spring
B7 QR Thumb Lever

B8 Tilt Handle
B9 Assy Screw & Cap
B10 Tension Assy

C1 Middle Casting
C2 Tilt Handle
C3 Assy Screw & Cap
C4 Tension Assy

D1 Main Casting
D2 Pan Handle
D3 Assy Screw & Cap
D4 Tension Assy

E1 Base Plate

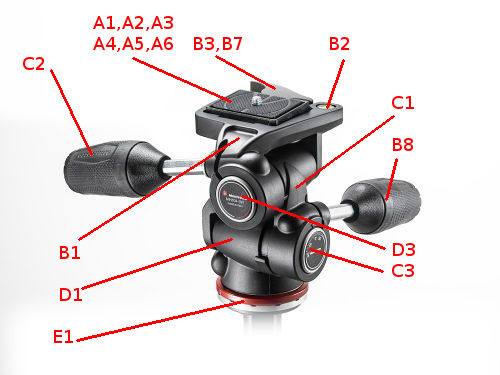

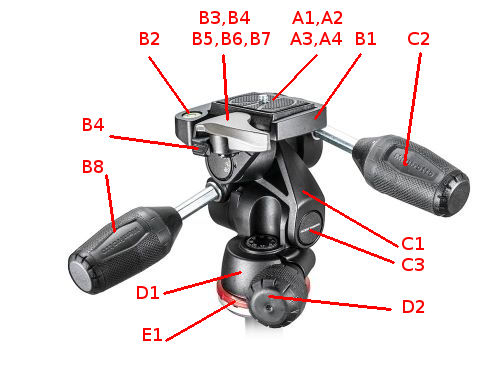

Editor note: Click on the numbered link to see the actual part picture. Not all parts are checked for foreward or backwards compatibility.

See MH804-3WUS
Manufacturers Parts List
